Gear Pump, 3" FPT Port, *151 GPM, Packed Box, 1" Steel Shaft, Bronze Bearings, Built-In Relief Valve

For Fixed and Mobile Transfer

QUIET-RUNNING HELICAL GEARS

Heat treated cast-iron pumping gears are accurately machined for quiet, efficient operation and long life.
The pumping gears are keyed to their shafts with a sliding fit and are easily replaced, if it becomes necessary.
Accurate machining insures proper meshing, and reduces friction and vibration.

LONG-LASTING WEARING SURFACES

Bearings are special wear-resistant, high-lead bronze. Iron and carbon bearings are available.
Four heavy duty sleeve bearings give positive support to pumping gears and insure long, efficient service.
Bearing grooves allow circulation of the liquid being pumped for lubrication and control of bearing temperature.
Outboard drive shaft bearing supports external radial loads and absorbs thrust loads.

The 3622HBFRV Has Bolt On Flanges.
*Standard with Packing glands; Viton® Mechanical Seal conversion kit is RR N34-98.

Manufacturer:

SKU: RR3622HBFRV

VIEW CATALOG PAGE E0242

Save!

5% on 3

$1,869.00 / EA

Qty:

i h

Specifications

Products specifications

Pump Type	Gear
Body Material	Cast Iron
Inlet Size	3"
Outlet Size	3"
Shaft Size	1"
Inlet Connection	FPT
Outlet Connection	FPT
Max GPM	151
Manufacturer Part Number	3622HBFRV-3A

Additional Information

RUGGED HOUSING

All castings are made of cast iron
Precise manufacturing tolerances provide minimum clearances for maximum pumping efficiency.
Large, hardened steel dowel pins insure positive alignment between the faceplate, case, and back plate.

PRECISION-GROUND SHAFTS

The steel shafts are induction hardened in the bearing and packing areas and are precision ground to exacting standards for maximum life.
Hardened stainless steel shafts are available.

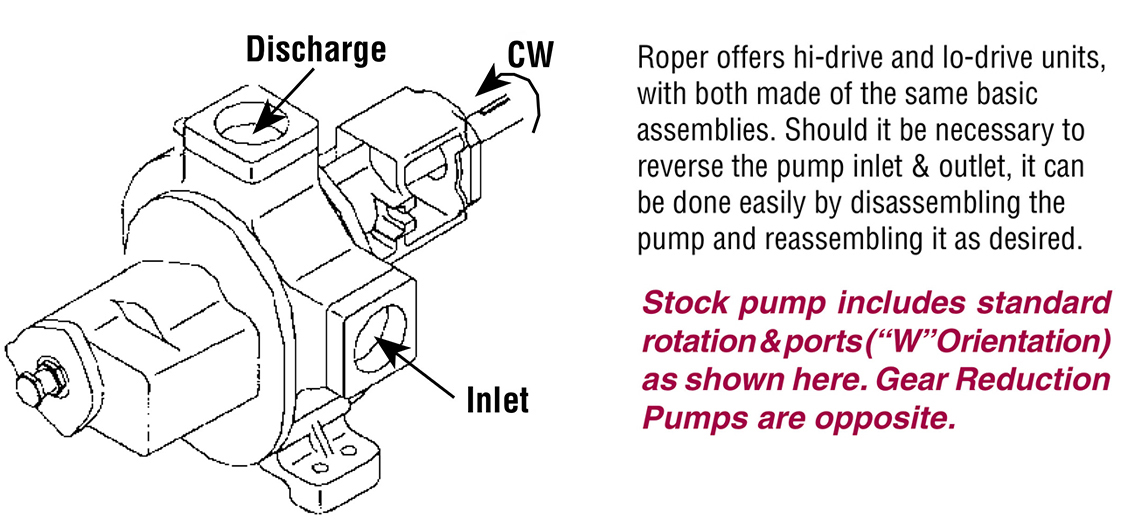

HI-DRIVE AND LOW-DRIVE UNITS
Roper offers hi-drive and lo-drive units, with both made of the same basic assemblies. Should it be necessary to change the pump from one arrangement to the other, it can be done easily by disassembling the pump and reassembling it as desired. Pump housings are Cast Iron. All models shown are equipped with outboard shaft bearings.
