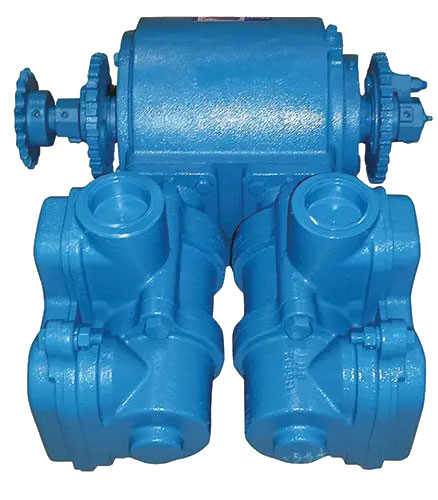

    Ground Driven Metering Pump, Adjustable Rate Dual Piston, 42.0 GPM, 120 PSI, 5:1 Max Ratio, 1-1/2" FPT Inlet Ports, 1-1/2" FPT Outlet Ports, No Clutch

    Adjustable Rate

    Features:

    • Apply (2) products with one piston pump.
    • Use only one drive system (DRV3300, 3200 etc.).
    • Independently adjustable stroke.
    • 5 to 1 Maximum ratio between pumping sides. (10:1 on NGP5655AR); 2:1 min. ratio.
    • Available as a ground driven pump or run hydraulically (Hydraulic motor extra).
    • Ideal for starter fertilizer on one side and nitrogen on the other side. (Ex: 5 GPA starter fertilizer & 10-25 GPA NPK; 7 GPA starter fertilizer & 14-35 GPA NPK).
    • Double piston-double acting.
    • Variable Stroke.
    • Rated Flow: 8055AR: 42 GPM total, 21 GPM per side. 9055AR: 34.2 GPM total, 68.4 GPM per side. 5655AR: 31.2 GPM total; 21.0 & 10.2 GPM
    • Rated Pressure is 120 PSI.
    • Rated Speed: 450 RPM maximum.

    Small Side Inlet/Outlet is 1" FPT/200 Series Flange; Large Side Inlet/Outlet is 1-1/2" FPT/200 Series Flange
    Manufacturer: John Blue
    SKU: BUNGP8055AR
    $2,490.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Products specifications
    Pump Type Piston
    Inlet Size 1-1/2"
    Outlet Size 1-1/2"
    Inlet Connection FPT
    Outlet Connection FPT
    Max PSI 120
    Motor Max RPM 450
