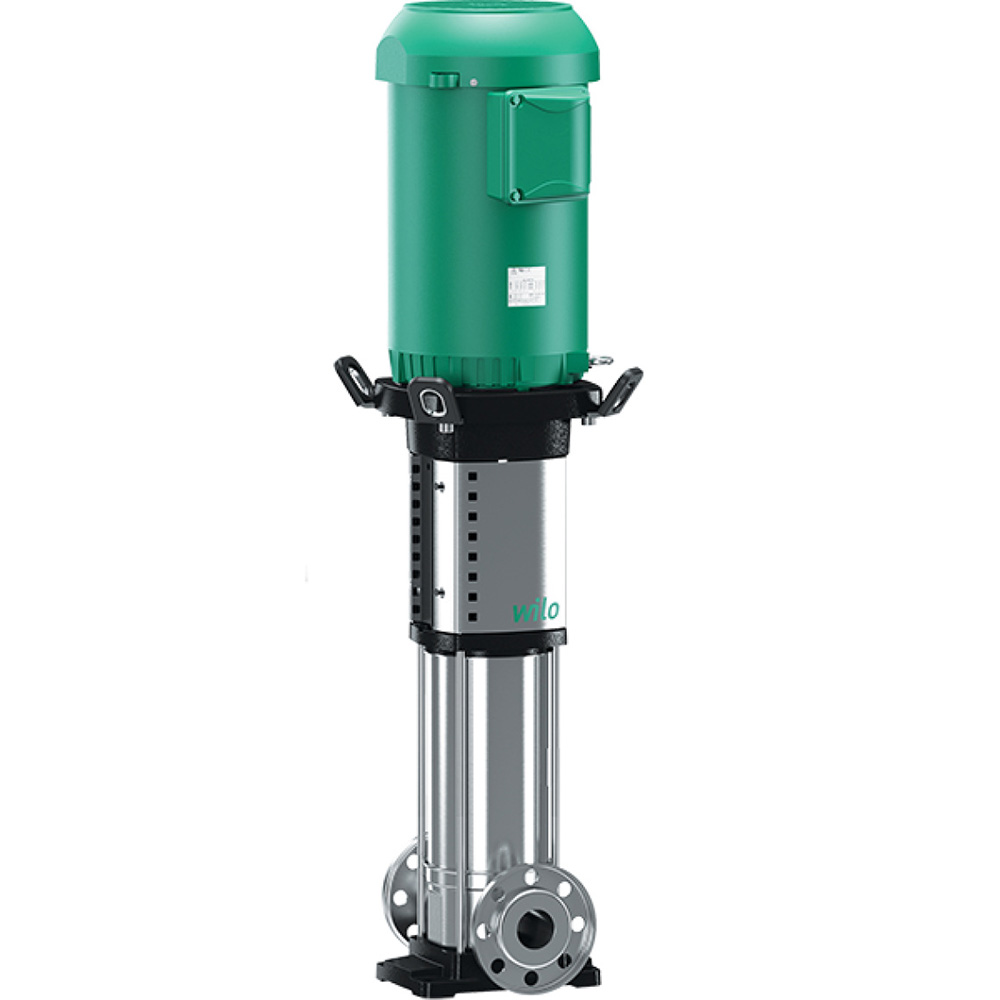

    Helix Vertical Muti-Stage Centrifugal Pump, Model V10, 18 Stages, EPDM, 5 HP, 1-1/4" Flange Size, 12 GPM @ 225 PSI, 208-230/460 Volt

    The Helix V Vertical Multistage Centrifugal Pumps are designed to serve a wide variety of markets and are used in applications such as water supply and pressure boosting, industrial circulation systems, water processing, water cooling circulation systems, washing systems and irrigation. For multi-pump systems see CO-Helix.

    Features:
    • Non-self-priming, high pressure, inline connections
    • User-friendly "X-Seal" cartridge mechanical seal which enables quick and easy maintenance
    • Integrated thrust bearings for reduced motor stress
    • Pump Lifting Lugs
    • Heavy Duty Pump Base
    • Available with integrated frequency converter and electronically commutated (EC) motor for enhanced energy efficiency (see Wilo Excel).

    * "-H" Suffix Denotes High Pressure Model. Model Number Denotes GPM at Best Efficient Point
    SKU: WO2700817-H
    $3,036.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Additional Information

    Technical Specifications:

    • NSF 61 Certified for Potable Water
    • Power Connections: 3 PH – 208-230/460/575V
    • Fluid Temperature Range: -5°F to 250°F
    • Pressure Range: 232 PSI for Normal Models to 363 PSI for High Pressure Models
    • ANSI Class 300# Flange Connections
    • 304 Stainless Steel Construction (Cast Iron Available)
    • Max Flow Rate: 130 GPM

    • 6" Impeller Diameter
    • Max Head: 750 ft
    • EPDM Seals Standard (FKM Available)
    • TEFC Motors Standard (ODP Available Upon Request)
    • 304 Stainless Steel Construction Certified to NSF/ANSI 61
    • Stainless Steel Volute, Impeller, & Shaft
    • Tungsten Carbide/EPDM (FKM Optional) Mechanical Seal
