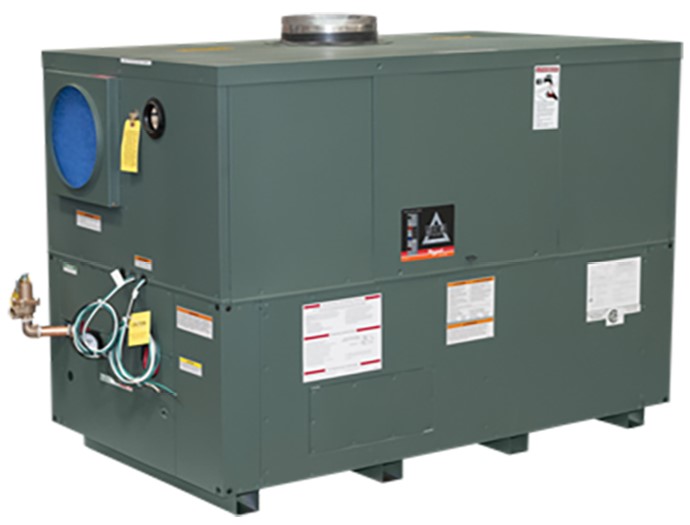

Hot Water Heaters, Raypak Delta Limited, 1,800,000 BTU, Natural Gas (Pump and Expansion Tank Not Included)

Raypak Delta Limited Series Water Heaters and Hydronic Boilers are designed for a wide variety of hot water and floor heat requirements. Easy to install, operate and service. Simple multi-stage operation for reliable performance and easy maintenance. Models from 399,000 to 1,800,000 Btu’s are shown but
larger sizes are available.

83-85% efficiencies
Copper-finned tube heat exchangers, (5-year warranty)
Glass-lined cast iron headers, (bronze available)
Powder-coated cabinets
Simple electronic controller and status display for easy monitoring
Fan-Assisted. Direct vent capable. Ducted combustion air ready
Cat 1 for vertical venting, Cat 111 for side wall venting
Ratings are shown for up to 2000ft elevations, (call for higher elevations)
Output temperatures to 200° F for water heaters and 230° F for hydronic boilers
Minimum non-condensing inlet temperature is 105° F
Water Heaters are designed for use with storage tanks, (not direct fire heat)
Hydronic boilers are designed for re-circulating floor heat systems
CSA low-lead certified
100% factory fire tested prior to shipping
Assembled in USA
Pumps and tanks are not included but are available if required

**Note: Water exceeding 16 grains hardness requires tube exchanger upgrade

Models WH1799/H1799 are rated at 1.8mil btu input. Output is 1.53mil btu for water heaters and 1.51mil btu for boilers. Dimensions are 91” wide x 33” deep x 41” high. Shipping weight, 1330 lbs.
