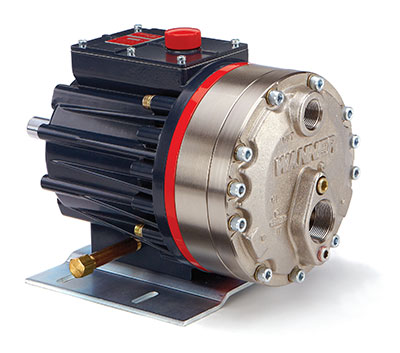

Hydra-Cell Pump (Diaphragm): MAX 20 GPM, 1000 PSI, 1050 RPM (1-1/8" Shaft)

Common Applications include:
Car Washes: Conveyor - Reclaim water
Lawn Care: Herbicides and Fertilizers
Carpet Cleaning: High Temperature Solutions
Water Treatment: Reverse Osmosis and Desalination Systems
Automatic Car Washes: High Pressure Pumping Units
Food Industry: Poultry and Meat Processing

Max. Required HP: 13.9
Inlet: 1-1/2"
Outlet: 1"
Dimensions: 15-1/2" L x 9-1/2" W x 10" H

Features:

As seen above, this versatile pump family can be used to accomplish a wide range of applications
One can expect to be able to pump the full spectrum of low-to-high viscosity fluids
Unique seal-less design and horizontal disk check valves enable the pump to handle abrasive products and suspended particulates that might damage and even destroy other types of pumps
Simple and basic design keeps not only initial costs down but keeps maintenance costs down also
The efficiencies of this pump reduce energy costs
Pump can run dry without damage
Minimal maintenance and downtime due to the fact that there are no seals, packings, or cups that can fail

Note: This pump can be ordered at flow rates of 4 or 6 GPM @ 1750 RPM if required.
*Optimum Usage of Pumps is 10% under full rating.
For specific applications, special materials of construction are available. Please give pumping requirements when ordering.
