    Hypro Cast Iron & Stainless Centrifugal Pumps with Hydraulic Motor (9303 & 9306 Series), Threaded

    Features:

    • Available in Cast Iron & 316 Stainless Steel
    • Hydraulic Motor Drive (for open center, closed center & load-sensing systems)
    • 1-1/2” NPT Inlet, 1-1/4” NPT Outlet or 2” x 1-1/2”
    • Temperatures to 140° F.
    • Impeller: Cast Iron Models are Nylon & Stainless Steel Models are Polypropylene
    • Hydraulic Motor is Internal Gear Gerotor
    • Cast Iron Models have Viton®/Ceramic Seals (9306CHM3CB and 5CB have Silicon Carbide Seals)
    • Stainless Steel Models have Life Guard® Silicon Carbide Seals
    • Maximum Motor PSI is 3000
    Manufacturer: Hypro - Pentair

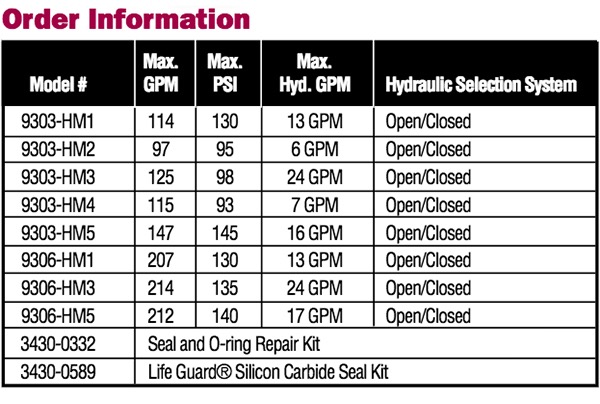

    Part No. Catalog Pump Type Body Material Seal Material Impeller Material Inlet Size Outlet Size Max GPM Max PSI Drive Price
    Picture of Straight Centrifugal Pump, Cast Iron with Hydraulic Drive, 2" x 1-1/2", 207 GPM, 130 PSI (Viton® Seals)
    SKU: HY9306CHM1C Catalog: E0237 Pump Type: Centrifugal Body Material: Cast Iron Seal Material: Viton® Impeller Material: Nylon Inlet Size: 2" Outlet Size: 1-1/2" Max GPM: 207 Max PSI: 130 Drive: Hydraulic Motor Price: $1,240.00 / EA
    i h
    Picture of Straight Centrifugal Pump, Cast Iron with Hydraulic Drive, 1-1/2" x 1-1/4", 114 GPM, 130 PSI (Viton® Seals)
    SKU: HY9303C-HM1 Catalog: E0237 Pump Type: Centrifugal Body Material: Cast Iron Seal Material: Viton® Impeller Material: Nylon Inlet Size: 1-1/2" Outlet Size: 1-1/4" Max GPM: 114 Max PSI: 130 Drive: Hydraulic Motor Price: $1,037.00 / EA
    i h
    Picture of Straight Centrifugal Pump, Cast Iron with Hydraulic Drive, 2" x 1-1/2", 212 GPM, 140 PSI (Viton® Seals)
    SKU: HY9306CHM5C Catalog: E0237 Pump Type:   Body Material:   Seal Material:   Impeller Material:   Inlet Size:   Outlet Size:   Max GPM:   Max PSI:   Drive:   Price: $1,203.00 / EA
    i h
    Picture of Straight Centrifugal Pump, Cast Iron with Hydraulic Drive, 1-1/2" x 1-1/4", 115 GPM, 93 PSI (Viton® Seals)
    SKU: HY9303C-HM4 Catalog: E0877 Pump Type: Centrifugal Body Material: Cast Iron Seal Material: Viton® Impeller Material: Nylon Inlet Size: 1-1/2" Outlet Size: 1-1/4" Max GPM: 115 Max PSI: 93 Drive: Hydraulic Motor Price: $1,037.00 / EA
    i h
    Picture of Straight Centrifugal Pump, Cast Iron with Hydraulic Drive, 2" x 1-1/2", 212 GPM, 140 PSI (SilCarbide Seals)
    SKU: HY9306CHM5CB Catalog: E0237 Pump Type: Centrifugal Body Material: Cast Iron Seal Material: Viton® Impeller Material: Nylon Inlet Size: 2" Outlet Size: 1-1/2" Max GPM: 212 Max PSI: 140 Drive: Hydraulic Motor Price: $1,309.00 / EA
    i h
    Picture of Straight Centrifugal Pump, Cast Iron with Hydraulic Drive, 1-1/2" x 1-1/4", 97 GPM, 95 PSI (Viton® Seals)
    SKU: HY9303C-HM2 Catalog: E0237 Pump Type: Centrifugal Body Material: Cast Iron Seal Material: Viton® Impeller Material: Nylon Inlet Size: 1-1/2" Outlet Size: 1-1/4" Max GPM: 97 Max PSI: 95 Drive: Hydraulic Motor Price: $1,069.00 / EA
    i h
    Picture of Straight Centrifugal Pump, Stainless with Hydraulic Drive, 2" x 1-1/2", 207 GPM, 130 PSI (SilCarbide Seals)
    SKU: HY9306SHM1C Catalog: E0237 Pump Type: Centrifugal Body Material: Stainless Steel Seal Material: Silicon Carbide Impeller Material: Polypropylene Inlet Size: 2" Outlet Size: 1-1/2" Max GPM: 207 Max PSI: 130 Drive: Hydraulic Motor Price: $2,211.00 / EA
    i h
    Picture of Straight Centrifugal Pump, Cast Iron with Hydraulic Drive, 1-1/2" x 1-1/4", 147 GPM, 145 PSI (Viton® Seals)
    SKU: HY9303C-HM5 Catalog: E0237 Pump Type: Centrifugal Body Material: Cast Iron Seal Material: Viton® Impeller Material: Nylon Inlet Size: 1-1/2" Outlet Size: 1-1/4" Max GPM: 147 Max PSI: 145 Drive: Hydraulic Motor Price: $1,102.00 / EA
    i h
    Picture of Straight Centrifugal Pump, Cast Iron with Hydraulic Drive, 2" x 1-1/2", 214 GPM, 135 PSI (SilCarbide Seals)
    SKU: HY9306CHM3CB Catalog: E0237 Pump Type: Centrifugal Body Material: Cast Iron Seal Material: Viton® Impeller Material: Nylon Inlet Size: 2" Outlet Size: 1-1/2" Max GPM: 214 Max PSI: 135 Drive: Hydraulic Motor Price: $1,411.00 / EA
    i h
    Picture of Straight Centrifugal Pump, Stainless with Hydraulic Drive, 2" x 1-1/2", 214 GPM, 135 PSI (SilCarbide Seals)
    SKU: HY9306SHM3C Catalog: E0237 Pump Type: Centrifugal Body Material: Stainless Steel Seal Material: Silicon Carbide Impeller Material: Polypropylene Inlet Size: 2" Outlet Size: 1-1/2" Max GPM: 214 Max PSI: 135 Drive: Hydraulic Motor Price: $2,279.00 / EA
    i h
    Picture of Straight Centrifugal Pump, Stainless with Hydraulic Drive, 1-1/2" x 1-1/4", 115 GPM, 93 PSI (SilCarbide Seals)
    SKU: HY9303SHM4 Catalog: E0237 Pump Type: Centrifugal Body Material: Stainless Steel Seal Material: Silicon Carbide Impeller Material: Polypropylene Inlet Size: 1-1/2" Outlet Size: 1-1/4" Max GPM: 115 Max PSI: 93 Drive: Hydraulic Motor Price: $1,945.00 / EA
    i h
    Picture of Straight Centrifugal Pump, Stainless with Hydraulic Drive, 1-1/2" x 1-1/4", 147 GPM, 145 PSI (SilCarbide Seals)
    SKU: HY9303SHM5 Catalog: E0237 Pump Type: Centrifugal Body Material: Stainless Steel Seal Material: Silicon Carbide Impeller Material: Polypropylene Inlet Size: 1-1/2" Outlet Size: 1-1/4" Max GPM: 147 Max PSI: 145 Drive: Hydraulic Motor Price: $1,964.00 / EA
    i h
    Picture of Straight Centrifugal Pump, Stainless with Hydraulic Drive, 1-1/2" x 1-1/4", 114 GPM, 130 PSI (SilCarbide Seals)
    SKU: HY9303SHM1 Catalog: E0237 Pump Type: Centrifugal Body Material: Stainless Steel Seal Material: Silicon Carbide Impeller Material: Polypropylene Inlet Size: 1-1/2" Outlet Size: 1-1/4" Max GPM: 114 Max PSI: 130 Drive: Hydraulic Motor Price: $1,945.00 / EA
    i h
    Picture of Straight Centrifugal Pump, Cast Iron with Hydraulic Drive, 1-1/2" x 1-1/4", 125 GPM, 98 PSI (Viton® Seals)
    SKU: HY9303C-HM3 Catalog: E0237 Pump Type: Centrifugal Body Material: Cast Iron Seal Material: Viton® Impeller Material: Nylon Inlet Size: 1-1/2" Outlet Size: 1-1/4" Max GPM: 125 Max PSI: 98 Drive: Hydraulic Motor Price: $1,173.00 / EA
    i h
    Picture of Straight Centrifugal Pump, Stainless with Hydraulic Drive, 1-1/2" x 1-1/4", 125 GPM, 98 PSI (SilCarbide Seals)
    SKU: HY9303SHM3C Catalog: E0237 Pump Type: Centrifugal Body Material: Stainless Steel Seal Material: Silicon Carbide Impeller Material: Polypropylene Inlet Size: 1-1/2" Outlet Size: 1-1/4" Max GPM: 125 Max PSI: 98 Drive: Hydraulic Motor Price: $2,020.00 / EA
    i h
