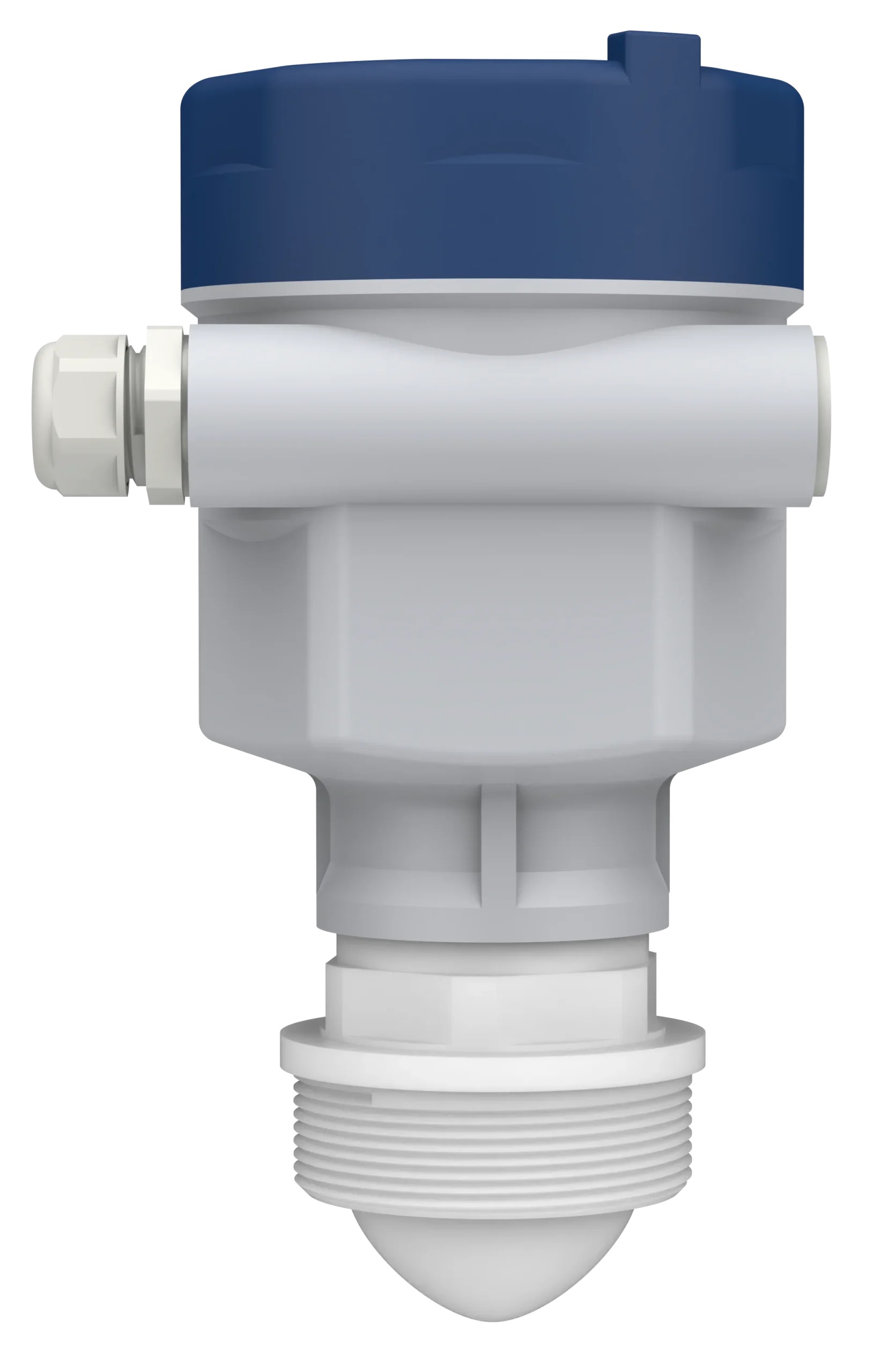

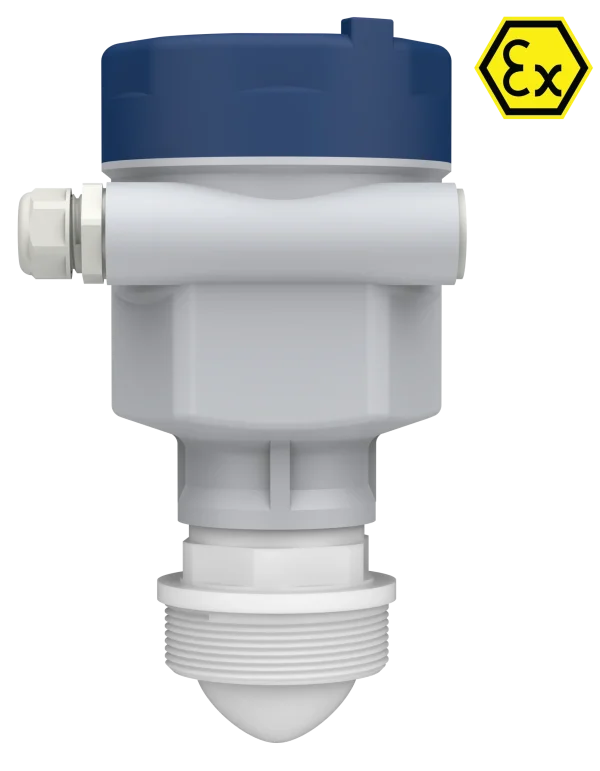

Level Transmitter, Radar, ProScan 2, LCD Display, 80Ghz, 1-1/2IN or 2IN MPT Connection, 4-20mA Output, NEMA 4-X Enclosure

ProScan® 2 Series Radar Level Transmitters, from Icon Process Controls, measure the liquid level inside a tank, vessel, or sump by using a PTFE/Teflon® (316SS Available) antenna. The antenna emits a low energy radar pulse. The pulses are laser focused with a small-diameter, concentrated beam which offers more reliable accuracy in conditions that involve vapor and/or out-gassing, or low-reflective media. The pulses reflect off the liquid surface and are read back by the antenna. The ProScan® 2 Series uses microprocessor technology coupled with mapping software that allows these tank level monitors to be used where other non-contact level sensing devices are unreliable.

Features:

Corrosion-resistant poly design
Small Dead Band
PTFE/316SS Antenna
Narrow Beam Angle
IP67/NEMA 4X Enclosure Rating
Suitable for Vacuum (up to 14.5" Hg)/Fumes
Loop Powered/2-Wire

*150lb Class ANSI Flange Connection Options Available - Call for Details

SKU: ICPS28000

VIEW CATALOG PAGE E3653

$2,404.00 / EA

Qty:

i h

Level Transmitter, Radar, ProScan 2, LCD Display, 80Ghz, 1-1/2IN or 2IN MPT Connection, 4-20mA Output, NEMA 4-X Enclosure

Shipping costs will be invoiced at time of shipment for all orders shipping to locations outside of the contiguous United States including Hawaii and Alaska. If you require a freight quote, please call us at 1-888-677-5054.
