    Mechanical Lever

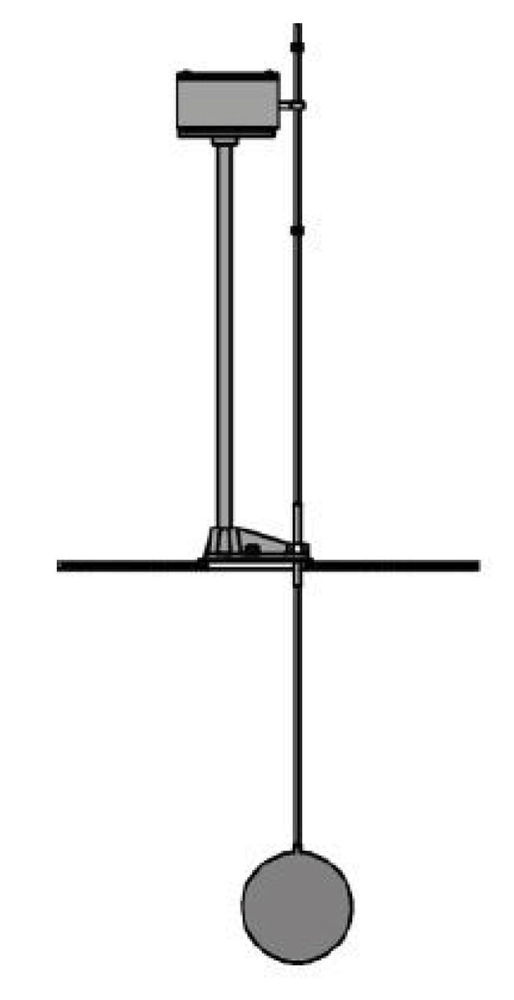

    The Lever Switch is actuated by a float ball or cylinder that is attached to a rod. When water rises or drops, the float adjusts with the water level until it hits a preset float stop on the rod. The float stops are simply screwed to the rod. Once the float hits a stop, the mechanical lever switch turns the pump on or off – depending upon whether the stop is either at the high level or low level.
    HP Ratings are for direct motor control. 115V can be ran up to 2HP Max & 230V can be ran up to 3HP Max. Float Options listed below are NEMA Type 1. Call for Options in NEMA Type 4 or Type 7. 3 Phase Power must use a control panel – cannot run direct motor control. Designed for Easy Installation and removal through 6-1/4" hole in the wet well cover.

    Includes:
    • Two pole float switch
    • Stainless steel float rod
    • Guide for float rod
    • Stainless steel float
    • Adjustable brass stops
    • Pedestal assembly with bottom plate. Plate mounts over the lever control hole in the wet well cover.

    Duplex & Other Simplex Options Available Upon Request Call With Systems Specifications
    0Types Available
    Picture of Mechanical Lever, Simplex, 8' Depth, 28" Height
    Mechanical Lever, Simplex, 8' Depth, 28" Height
    Float Switch, Mechanical Lever, Simplex, 115V 2HP Max, 230V 3HP Max, Weil Brand
    SKU: WO8201K2015
    VIEW CATALOG PAGE E3518
    Call for pricing
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Picture of Mechanical Lever, Simplex, 10' Depth, 14" Height
    Mechanical Lever, Simplex, 10' Depth, 14" Height
    Float Switch, Mechanical Lever, Simplex, 115V 2HP Max, 230V 3HP Max, Low Overhead Room Mount, Weil Brand
    SKU: WO8202K2014
    VIEW CATALOG PAGE E3518
    Call for pricing
