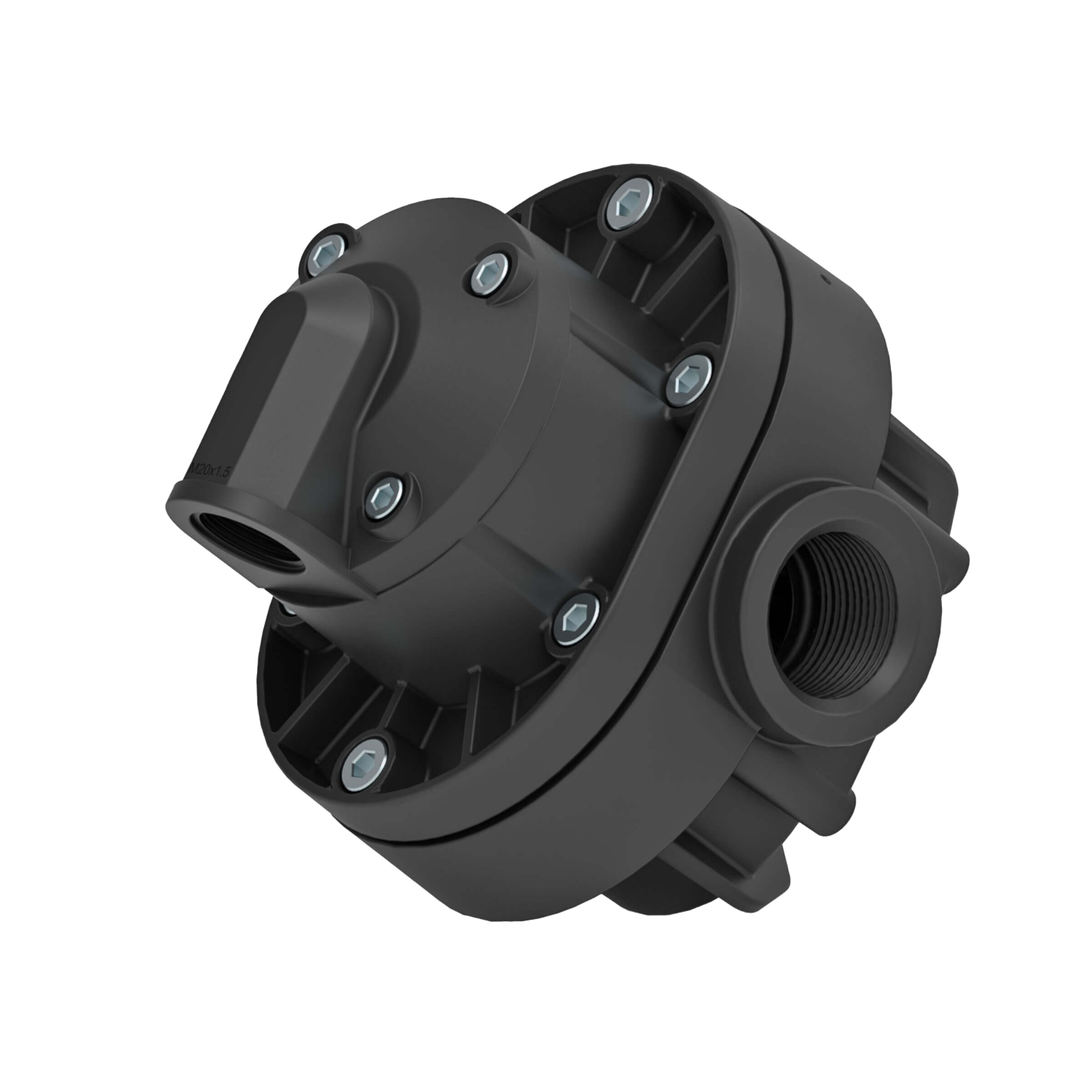

Oval Gear Meter, Poly, 1" FPT, 2.6 to 40 GPM, Viton/FKM O-ring, No Display

GPI FLOMEC® Poly Chemical Flow Meters provide precision volumetric flow measurement for fluid transfer processes such as batching and dosing and are ideal for applications where stainless steel is not suited or permitted. These 1" poly oval gear flow meters feature PPS rotors (no bearing), delivering highly accurate, repeatable readings of flow rates across both high- and low-viscosity liquids. Poly meter housings with 1" FPT inlet/outlet ports. Local readout models include a RT40 flow rate totalizer with backlit LCD display programmable to display re-settable (batch) total, cumulative total, and instantaneous flow rate in either gallons or liters per minute.

Usable with a wide range of water-based liquids, aggressive chemicals, most petroleum products including fuels, oils, and lubricants, and Diesel Exhaust Fluid (DEF).

Rate totalizer with backlit large-digit LCD Display (local readout model only)
PPS Rotors, No Bearing
FKM (Viton™) 5º F minimum (-15º C) O-Ring
High accuracy & repeatability, direct reading flow meter
No requirement for flow conditioning (straight pipe runs)
Measures high & low viscosity liquids
Quadrature pulse output option & bi-directional flow

Flow Range: 2.6 - 40 GPM (10-150 L/min) @ 3cP
Accuracy of Reading: +/- 0.5%
Type: Oval Gear
Working Pressure: 174 PSI (12 bar)
Max Working Temp: 176° F (80° C) Maximum
Inlet/Outlet: 1" FNPT
Warranty: 2-year
Approvals: CE, NEMA 4, IP65

SKU: GIOM025P001-822

VIEW CATALOG PAGE E1468

$570.00 / EA

Qty:

i h

Oval Gear Meter, Poly, 1" FPT, 2.6 to 40 GPM, Viton/FKM O-ring, No Display

Shipping costs will be invoiced at time of shipment for all orders shipping to locations outside of the contiguous United States including Hawaii and Alaska. If you require a freight quote, please call us at 1-888-677-5054.
