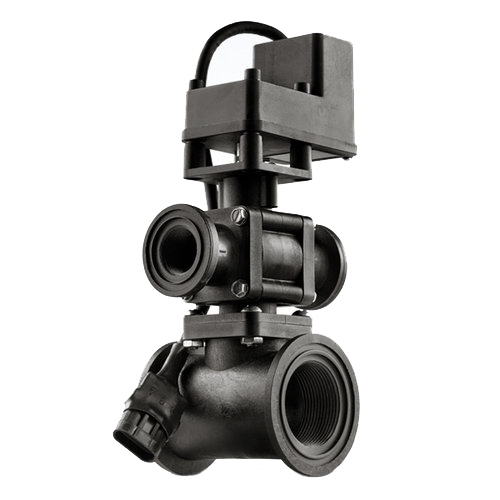

Motorized Electric Ball Valve, Single Flanged Manifold, 3/4" FPT Flange, 12-Volt, 2 & 3-Way, 3-Pin Weatherpack Connection

TIR Motorized Valves offer excellent control of a wide range of viscosities with medium pressure ranges, minimal pressure drops (only 5 PSI at max GPM), and high-volume flows. Drop-in style design makes installation quick and simple. Standard valves feature 1" NPT inlet and outlets. Stackable threaded and NPT flanged manifold options available. Valve housings are glass-filled nylon with 303 stainless-steel wetted parts. Viton® o-rings and Teflon seals are standard. Motors are totally enclosed with a protective, self-resetting fuse. Valves built with 12" 3-pin Weatherpack sealed electrical connections. 12-volt Open/Close times of 0.8 seconds.

Technical Specs:

Type: Motorized Ball Valve
Style: On-Off
Port Size: 3/4" (1.5" Bypass)
Port Number: 3
Body Material: Glass-filled Nylon
Ball/Disc Material: 303 stainless steel
Max GPM: 30 GPM (5 PSI drop; CV Rating of 13.4)
Flow Direction: 2-Way or 3-way (depending on use of included 3/4" repositionable outlet plug)

Manifold: Yes
If Manifold Yes—# of Valves: 1
Operation: 12 Volt DC (2.5 Amp)
Actuation Type: Electric
Actuation: 0.8 seconds
Connection Type: 3/4" FPT Flanged Outlets; 1.5" FPT Flanged Bypass
Max Working Pressure: 200 PSI
Max Temp Range: 32° – 150° F

All valves available in 1-5 Banked Manifold Sections. TIR Motorized Valves compatible with TIR MV specific control systems ONLY. Call for Options.

Manufacturer:

SKU: TX2702-1F

VIEW CATALOG PAGE E1328

$376.00 / EA
