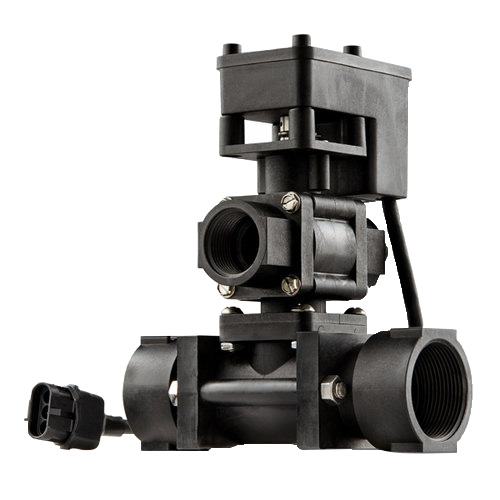

Motorized Electric Ball Valve, Single Manifold, 1", 12-Volt, 2 & 3-Way, 3-Pin Weatherpack Connection

TIR Motorized Valves offer excellent control of a wide range of viscosities with medium pressure ranges, minimal pressure drops (only 5 PSI at max GPM), and high-volume flows. Drop-in style design makes installation quick and simple. Standard valves feature 1" NPT inlet and outlets. Stackable threaded and NPT flanged manifold options available. Valve housings are glass-filled nylon with 303 stainless-steel wetted parts. Viton® o-rings and Teflon seals are standard. Motors are totally enclosed with a protective, self-resetting fuse. Valves built with 12" 3-pin Weatherpack sealed electrical connections. 12-volt Open/Close times of 0.8 seconds.

Technical Specs:

Type: Motorized Ball Valve
Style: On-Off
Port Size: 1"
Port Number: 3
Body Material: Glass-filled Nylon
Ball/Disc Material: 303 stainless steel
Flow Direction: 2-Way or 3-way (depending on use of included 1" repositionable outlet plug)
Max GPM: 30 GPM (5 PSI drop; CV Rating of 13.4)

Manifold: Yes
If Manifold Yes—# of Valves: 1
Operation: 12 Volt DC (2.5 Amp)
Actuation Type: Electric
Actuation: 0.8 seconds
Connection Type: 1" FPT
Max Working Pressure: 200 PSI
Max Temp Range: 32° – 150° F

All valves available in 1-5 Banked Manifold Sections. TIR Motorized Valves compatible with TIR MV specific control systems ONLY. Call for Options.

Manifold end plates available in 1", 1.5", and blank end options. End plates sold separately.

Manufacturer:

SKU: TX2702-1

VIEW CATALOG PAGE E1328

$362.00 / EA
