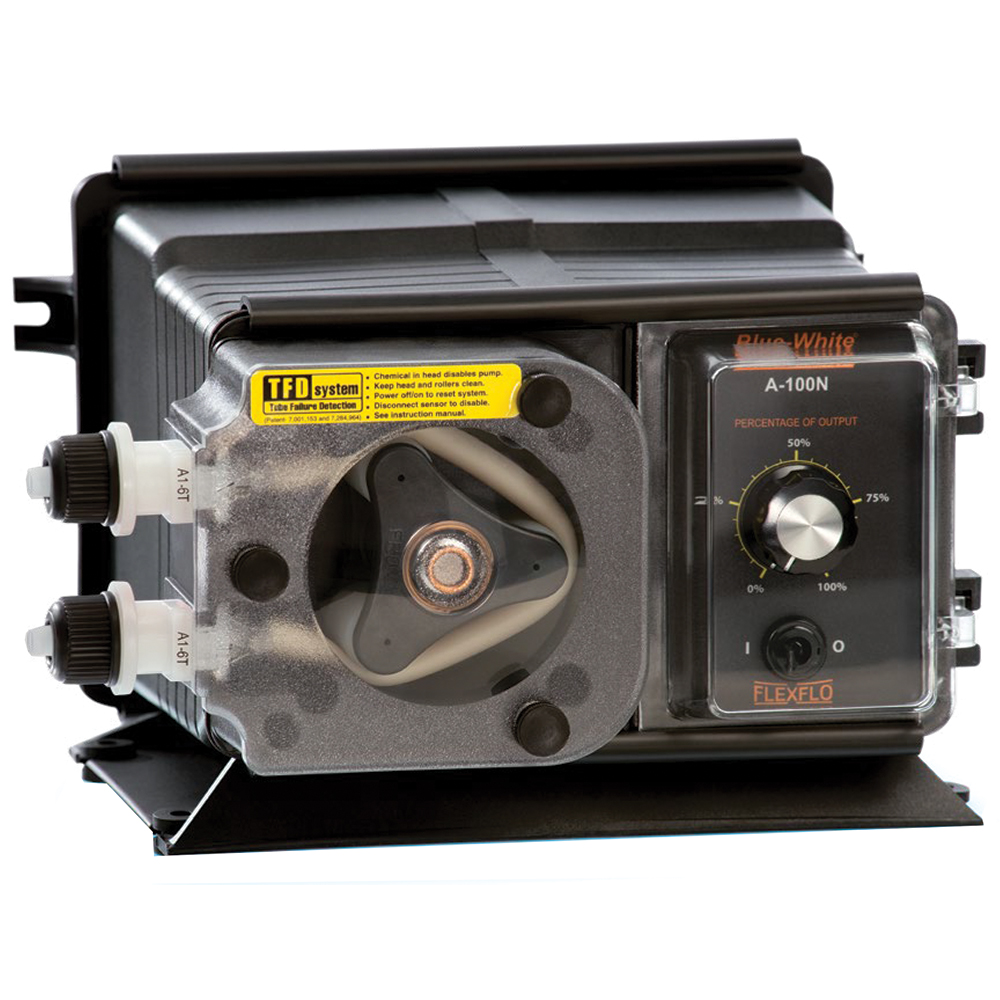

Peristaltic Metering Pumps, A1N Series

Blue-White, FLEXFLO Peristaltic Metering Pumps. Time tested tube and roller design. Ideal for precise Injection and Metering of a wide variety of chemicals for many applications including highly viscous products.

Common Applications:

• Chemical Metering

• Water Treatment

• Fertigation and Nutrient Injection

• Cooling Tower and Boiler Treatment

• Biocide Feed

• Acids Injection.


A1N Series Pumps feature Manual Variable Speed Dial Knob for flow output setting from 10-100%. NEMA 3R (IP66) enclosures. Temperatures to 130° F. Dimensions: 9-1/4" W x 9" D x 6"H.

Standard FeaturesSelf-priming

• No valves to clog or foul

• Compact design

• Continuous duty

• Output volume is not affected by changes in back pressure

• Patented tube design installs easily and remains centered on the rollers at all times

• Built-in Tube Failure Detection System

• Chemical resistant components for specific chemicals.


Specifications:

• Rated up to 5000 Centipoise

• Suction lifts to 30Ft

• Up to 50% solids by volume

• 115 Volt shown. (230 Volt available)

• Outputs to 5.6 Gph, (12oz/minute)

• Pressures from 50-100 PSI.

These metering pumps feature a manual speed adjustment knob.
All models have tubing as shown with Polypropylene, Ceramic, Hastelloy, TFE, FKM and PVDF wetted parts with PVC inlet suction tubing.

Common A1N pumps are shown but, other motor rpm, flow rates and voltages are available. Pumps are also available mounted to 7, 15 or 30 gallon storage tanks if required, call for pricing.
