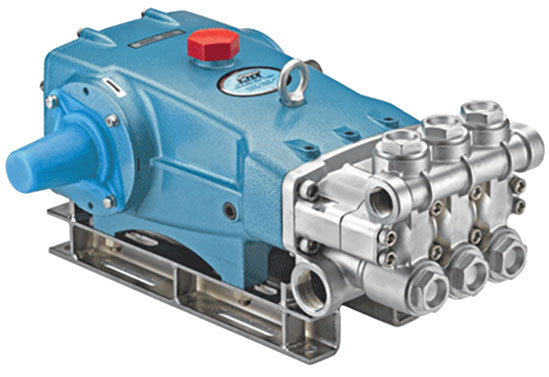

    Plunger Pump: MAX 36.0 GPM, 1200 PSI, 800 RPM, 1-1/2" Inlet, 1" Outlet, 35mm Shaft

    GPM: 36
    PSI: 1200
    RPM: 800
    Inlet: 1-1/2"
    Outlet: 1"
    Shaft: 35mm
    Mounting Rails: 92674
    Manufacturer: Cat Pumps
    $5,841.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Products specifications
    Pump Type Plunger
    Seal Material Buna
    Inlet Size 1-1/2"
    Outlet Size 1"
    Shaft Size 35mm
    Max GPM 36
    Max PSI 1200
    Max Temp (Deg. F) 160
    Pump Max RPM 800

    Additional Information

    CAT PUMPS® TRIPLEX PLUNGER PUMPS are designed to deliver smooth, low pulsation flows at a wide variety of pressures and flow rates. Widely used in continuous-duty, high pressure applications including Car/Truck Wash, Industrial Cleaning, Pressure Washing, Reverse Osmosis, Water Misting and many more.

    CAT PUMPS® are the "Pumps with Nine Lives". Standard Features include: High pressure seals that are lubricated and cooled by the solution being pumped • Oil-bath crankcase • Heat treated valves and seats • Forged brass or stainless steel manifolds • Solid ceramic plungers • Exclusive high pressure seal design • Rated from 140° to 160° F. depending on the model. Seal options up to 180° F. available • Wet ends can be serviced without entering the crankcase • Pumps are rated to 50 micron particles and 5-9 ph.

    Note: Mounting rails are not included and must be ordered separately except for 67 and 68 Series.
