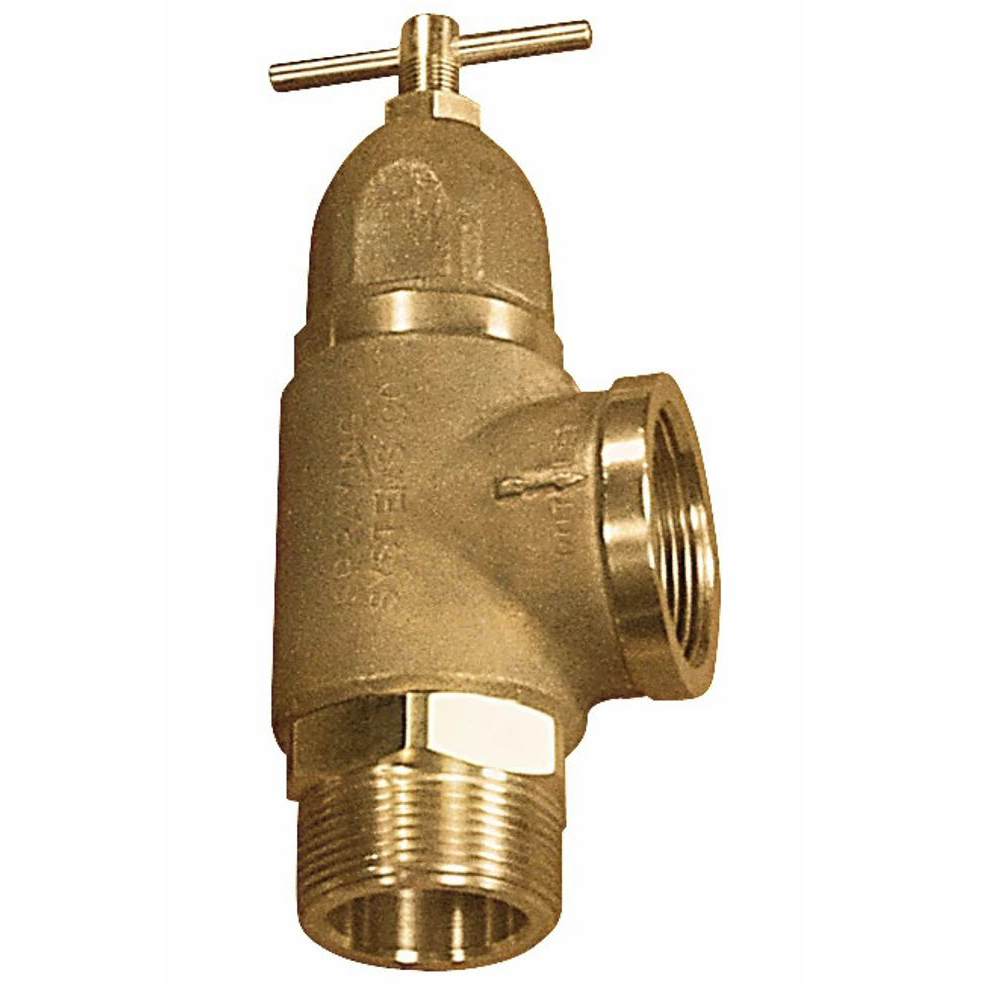

Pressure Relief Valve, Piston Style, Brass, 1/4" MPT x 1/4" FPT Ports

Piston style relief valves are designed for efficiently bypassing excess liquid within pressurized fluid systems in order to maintain set line pressures. These brass regulating valves can be adjusted with a quick twist of the wrist or wrench, thereby enabling operators better management of system line pressure anywhere within the valve's operating range. Accurate and dependable control of spraying pressures up to 150 PSI.

These pressure relief valves are constructed of brass bodies and internals, with a stainless-steel spring which provides sensitive response to pressure fluctuations at all pressure settings. Pressure settings are firmly held in place by a locknut. The floating seat features an internal guide vane that minimizes chatter. A removable bonnet enables fast, simple servicing without removing the valve from the line. These brass relief valves are very versatile and can be used in a wide array of agricultural and industrial systems and applications.

Also available in Aluminum and Ductile Iron from 1/4" to 1-1/2" sizes.

Technical Specs:

Type: Piston
Style: Regulating/Relief
Port Size: 1/4"
Port Number: 2
Body Material: Brass
Ball/Disc Material: Brass
Seat Material: Brass

Flow Direction: One Way
Flow: Full Port
Actuation Type: Manual
Connection Type: 1/4" MPT (Inlet) x 1/4" FPT (Outlet)
Max Working Pressure: 150 PSI

Manufacturer:

SKU: SS110B-1/4

Save!

10% on 100

$42.75 / EA
