Remote Fuel Dispenser System, Digital, UL Listed (US & Canada)

FR902 Series · UL & cUL Listed

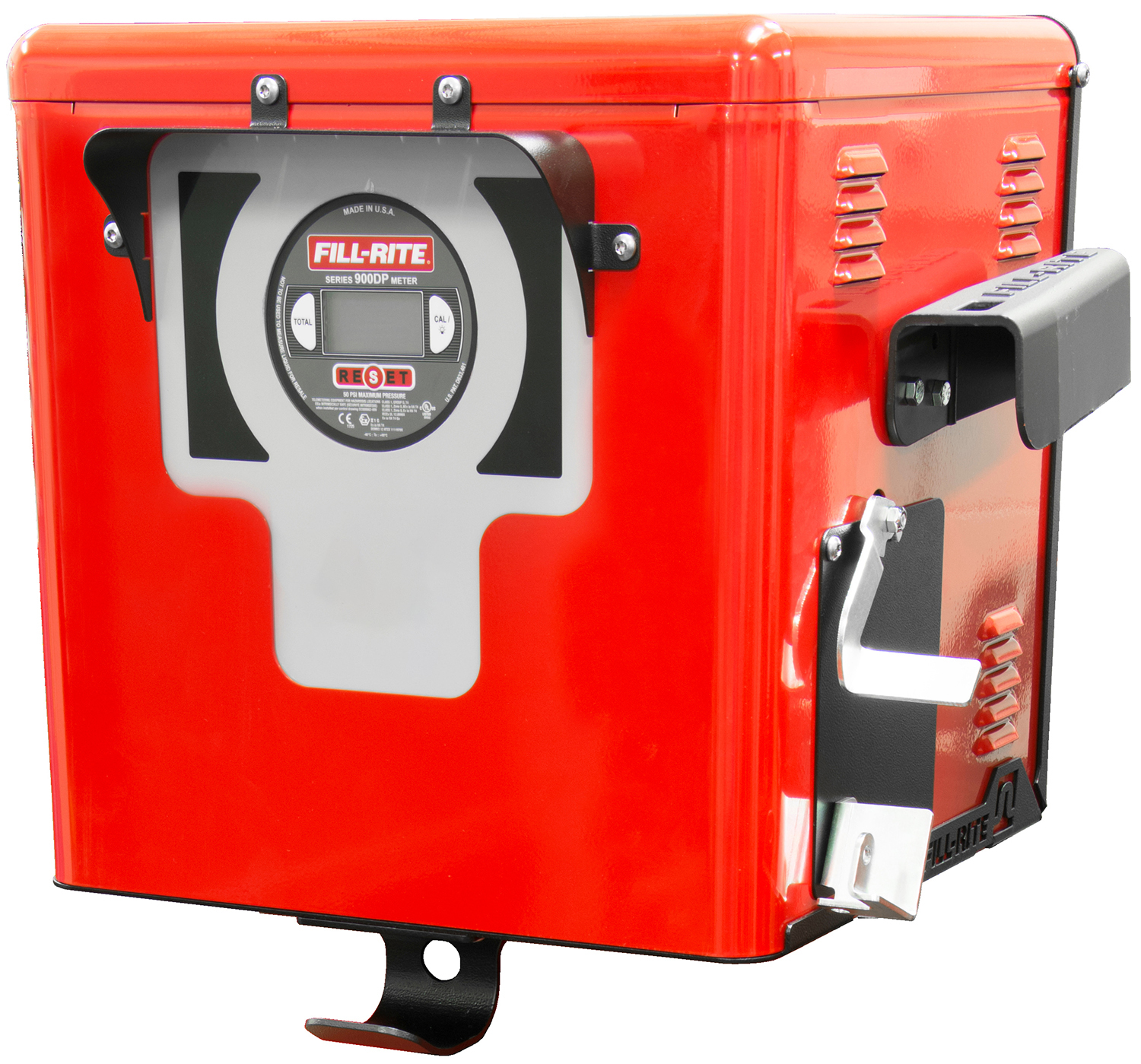

Fill-rite's 902 Series of heavy-duty fuel dispensers are engineered for high-volume applications and should be used with remote mount pumps for convenient meter and nozzle access when paired with aboveground fuel tanks. Constructed of powder-coated steel, these pumps are built to last for years within the toughest applications. FR902DPU remote units include an encased 900CD digital meter, solenoid valve, water hammer arrester, and remote on/off switch. A built-on nozzle rest and hose hook eliminates equipment from being left on the ground and potentially ran over. Digital measurement measures fuel more accurately than comparable mechanical models at +/- 1.25% accuracy, ensuring the most precise record-keeping for your business. Flowrate range of 6 to 40 GPM.

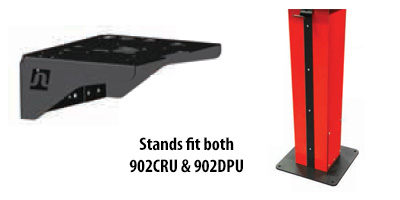

Note: Hose and nozzle NOT included. Optional Wall Mount (KITWM) or Pedestal Kit (KITPD) sold separately – see below.

Features:

Pump Body Material: Powder-coated steel
Display Type: 4-Digit LCD
Inlet/Outlet Size: 1" FPT
Mounting Size/Type: 2" MPT Bung; Pedestal or Wall Mount (optional)
Max Flowrate: 40 GPM Voltage: 115 Volt AC
Accuracy (+/- %): 1.25 Repeatability (+/- %): 0.25
Max Operating/Discharge Pressure: 50 PSI
Operating Temperature Range: -17° to 104° F
Warranty: 2 Year

Manufacturer:

SKU: FR902DPU

VIEW CATALOG PAGE E0754

$3,411.00 / EA

Qty:

i h

Remote Fuel Dispenser System, Digital, UL Listed (US & Canada)

FR902 Series · UL & cUL Listed

Shipping costs will be invoiced at time of shipment for all orders shipping to locations outside of the contiguous United States including Hawaii and Alaska. If you require a freight quote, please call us at 1-888-677-5054.
