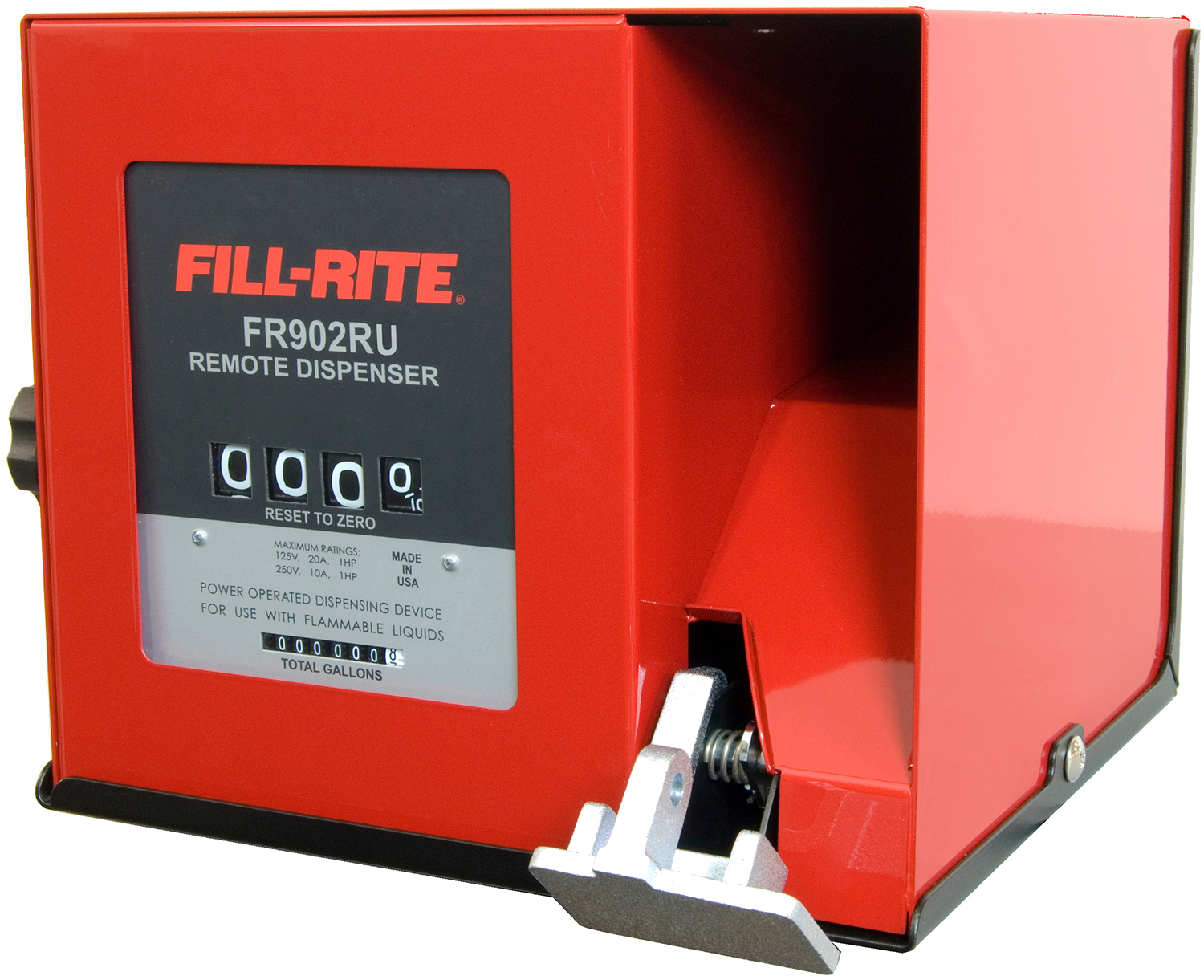

Remote Fuel Dispenser System, Mechanical, UL Listed (US & Canada)

FR902 Series · UL & cUL Listed

Fill-rite's 902 Series of heavy-duty fuel dispensers are engineered for high-volume applications and should be used with remote mount pumps for convenient meter and nozzle access when paired with aboveground fuel tanks. Constructed of powder-coated steel, these pumps are built to last for years within the toughest applications. FR902CRU remote units include a 901C mechanical meter, solenoid valve, manual meter reset knob, and remote on/off switch. A built-on nozzle rest and hose hook eliminates equipment from being left on the ground and potentially ran over. Flowrate range of 6 to 40 GPM.

Note: Hose and nozzle NOT included. Optional Wall Mount (KITWM) or Pedestal Kit (KITPD) sold separately – see below.

Features:

Pump Body Material: Powder-coated steel
Display Type: 4-Digit Mechanical
Inlet/Outlet Size: 1" FPT
Mounting Size/Type: 2" MPT
Bung; Pedestal or Wall Mount (optional)
Max Flowrate: 40 GPM
Voltage: 115 Volt AC
Accuracy (+/- %): 2 Repeatability (+/- %): 0.38
Max Operating/Discharge Pressure: 50 PSI
Operating Temperature Range: -17° to 104° F
Warranty: 2 Year

Manufacturer:

SKU: FR902CRU

VIEW CATALOG PAGE E0754

$1,901.00 / EA
