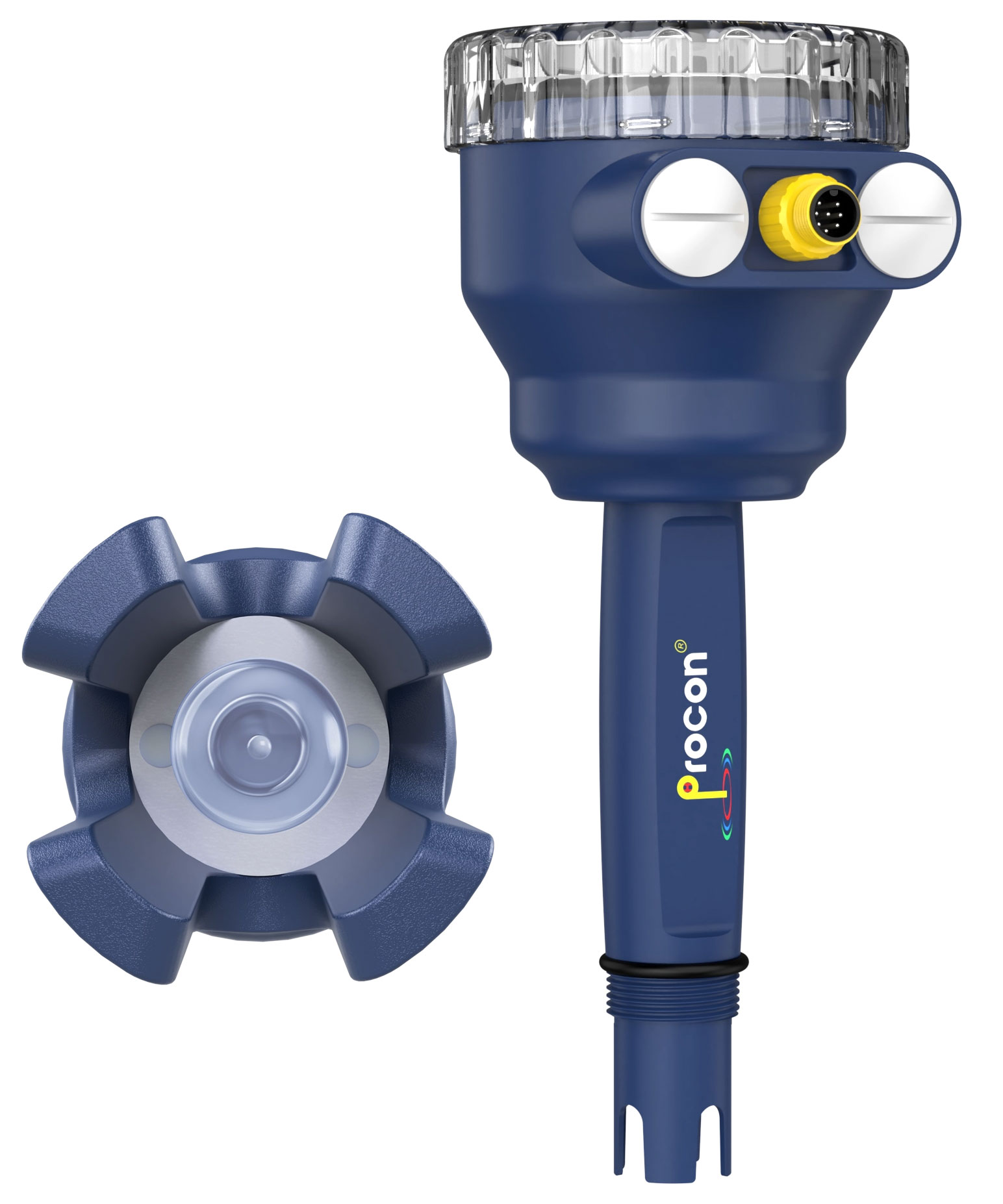

Sensor, pH, Polypropylene Body, 4-20mA 2-wire Flying Lead Output, 3/4IN MPT, Blind Display, J-Box, PT1000 Temp Compensation, 5m Cable, Bulb Probe

The ProCon® pH Sensors from Icon Process Controls is a robust pH sensor line that is designed to bring versatility/long-term reliability and pair that combination with fast response times/high accuracy. These pH sensors are specifically engineered with double ceramic reference diaphragms – which provide highly responsive pH indication. Additionally, the double salt bridge junction, paired with the PTFE reference technology is the basis for all P14 series electrodes. The inner reference chamber is charged with potassium chloride (KCl) gel. All measurement functions: measuring electrode, temperature sensor, and inner reference chamber - are contained in one compact body. Available in 4-wire (use with ProCon® Controllers Only) or 2-wire flying leads. Standard cable length is 5m. There are other P14 Series pH Sensors available for HF Acid (P14H & P14F), Seawater (P14S), Desulfurization (P14D), Pure Water/Low Ion Concentration (P14P) – Call for Details. Analytical fittings (Saddles, Union Tees, etc) are available – Call for Details.

P14G Features:

Measuring Range: 0 - 14pH
Zero Potential: 7.00 ± 0.25
Pressure Range: 0 – 90PSI
Temperature Range: 14 - 176°F
Temperature Sensor: Pt1000 (Standard) / Pt 100 Available
Body Material: Polypropylene / PPS Ryton® Available
Membrane Resistance: <600 MΩ
Reference System: Ag / AgCl / KCl
Liquid Junction: Porous Ceramic
Double Salt Bridge System: Yes
Connection Thread: ¾" MPT
Enclosure: J-Box or Flying Lead
Output Options: 2-wire 4-20mA / 4-20mA + RS485 / 4-wire 4-20mA (ProCon® Controller Only)
Blind Display

SKU: ICP14G-PM1BJ

Save!

10% on 5

$820.00 / EA

Qty:

i h

Sensor, pH, Polypropylene Body, 4-20mA 2-wire Flying Lead Output, 3/4IN MPT, Blind Display, J-Box, PT1000 Temp Compensation, 5m Cable, Bulb Probe

Shipping costs will be invoiced at time of shipment for all orders shipping to locations outside of the contiguous United States including Hawaii and Alaska. If you require a freight quote, please call us at 1-888-677-5054.
