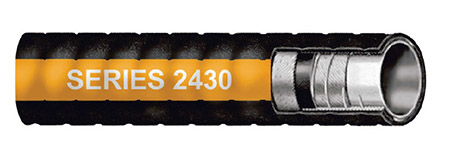

Series 2430 Modified XLPE Chemical Hose

Series 2430 is excellent for the transfer of corrosive chemicals. The modified cross-link polyethylene tube stock is designed to handle over 98% of all chemicals and provide the very best in maintaining a tight seal and superior coupling retention. It is extremely flexible and the superior bend radius allows for easy handling and long lasting performance. Rated to 200 PSI (3" is 150 PSI).

Tube: Modified cross-link polyethylene
Cover: Black Corrugated EPDM
Reinforcement: Multiple textile plies with dual wire helix
Temperature: -40° F. to +250° F. (-40° C. to +121° C.)

Specified Length is Overall Assembly Length.

	Part No.	Catalog	Length	Tube Material	Hose I.D.	Hose O.D.	Bend Radius	Standard Package Size	Max PSI	Max Temp (Deg. F)	Color	Application	Price
	SKU: GP2430-2X20	Catalog: E1234	Length: 20'	Tube Material:	Hose I.D.:	Hose O.D.:	Bend Radius:	Standard Package Size:	Max PSI:	Max Temp (Deg. F):	Color:	Application:	Price: $663.00 / EA	i h
	SKU: GP2430-3	Catalog: E1234	Length:	Tube Material: Cross-Linked Polyethylene	Hose I.D.: 3"	Hose O.D.: 3.58"	Bend Radius: 10"	Standard Package Size: 100'	Max PSI: 150	Max Temp (Deg. F): 250	Color: Black	Application: Chemicals	Price: $3,675.00 / RL	i h
