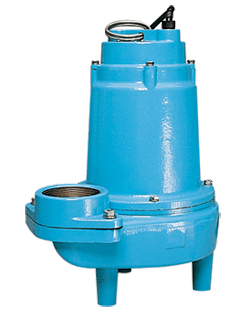

Sewage Pump, Submersible, 1 HP-230V Motor, 160 Max GPM @ 10 ft., NO Auto Switch

Cast Iron • 230 Volt

For high volume transfer of liquids with solids up to 2" diameter. Completely submersible design. Ideal for Commercial, Agricultural or Industrial applications where large solids may be present.

Model 16S-CIM:

Manual pump rated to 160 GPM @ 10' height.
Shut-off is 35'.
Motor is 1 hp, 230 volt with 20' power cord.
Discharge port is 3" FPT.
Handles solids to 2".
Standard with cast iron impeller.
Dimensions: 16" H x 14-1/16" L x 9-7/8" W. Weight 88 lbs.

Manufacturer:

SKU: GJ16S-CIM

VIEW CATALOG PAGE E0257

$1,448.00 / EA

Qty:

i h

Specifications

Products specifications

Pump Type	Sewage
Body Material	Cast Iron
Impeller Material	Cast Iron
Max Diam. Solids	2"
Length	14-1/16"
Width	9-7/8"
Height	17-3/16"
Max GPM	160
Drive	Electric Motor
Motor HP	1
Voltage	230

Additional Information

Standard Features:
• Oil filled motor housings for lifetime lubrication
• Mechanical type seals of Nitrile/ceramic/carbon construction
• Thermal overload protection
• Cast Iron pump housings with Epoxy coating for added corrosion resistance.
• All motors are single, phase, (three phase available in some models).
• All pumps are UL/CSA approved.

Check pump components for compatibility if chemical solutions are to be removed.
