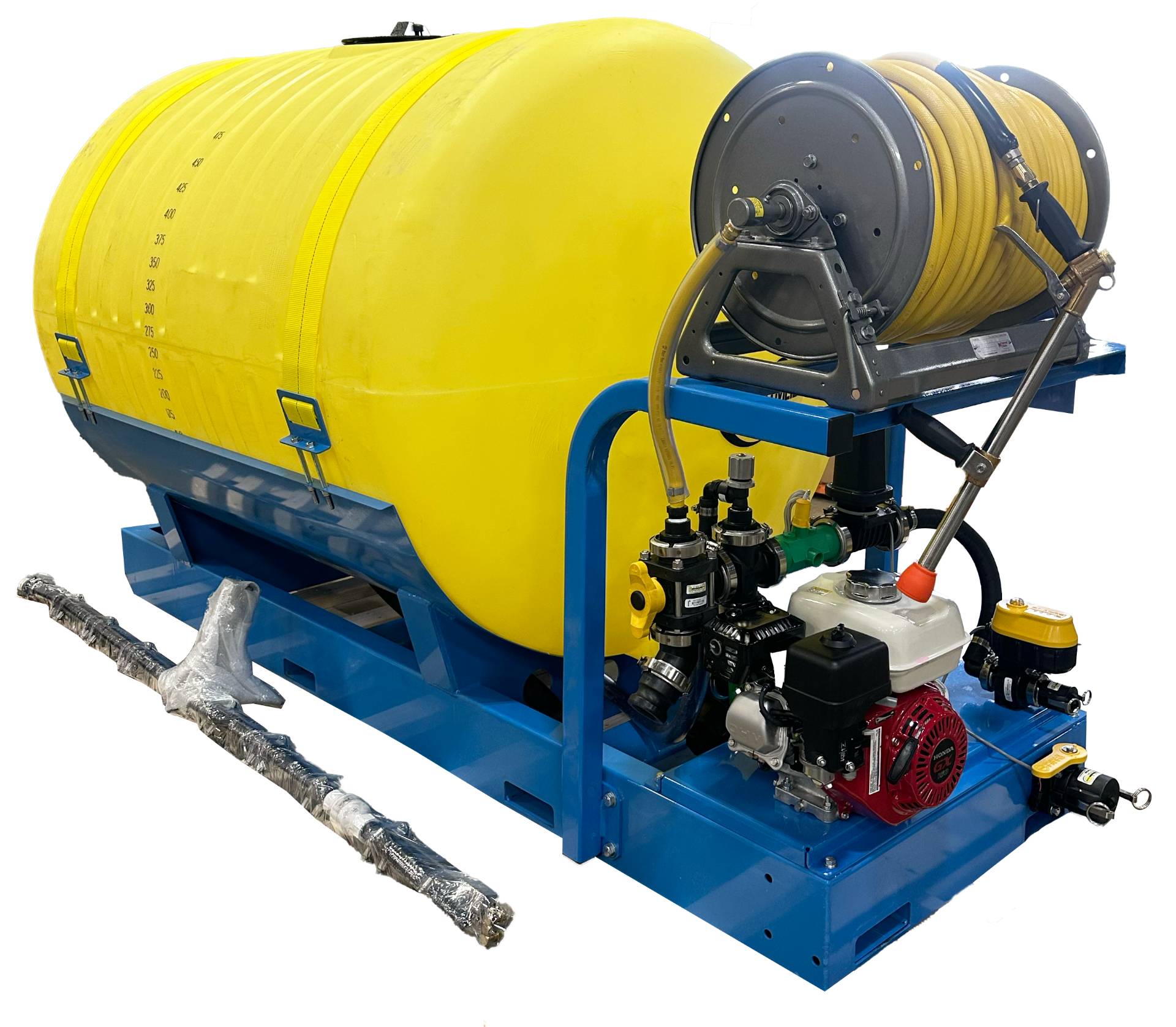

Skid Sprayer, 500 Gallon Tank, Manual Hose Reel, PB80R 80" Boom Complete and *Raven SCS203 Rate Control System Complete (96" L x 40" W x 57" H) includes round tank with 4" diameter

System Features:

The compact, heavy-duty welded steel skid frames are made to fit in tight spaces including pickup beds.
Powder coat paint finish on all models for excellent durability & chemical resistance.
Skid-Mount Sprayers featuring Ace 6E660 centrifugal pump (1-1/2" x 1-1/4") close-coupled to a 5.5 HP Honda engine (80 GPM at 40 PSI; 30 GPM at 70 PSI).
200, 300 or 500 gallon tanks with vented top lids & molded-in gallonage markers. (300 Gallon Tanks include internal baffle).
Hannay 1500 Series manual hose reel with 300' of 1/2" 600 PSI hose and 17" adjustable spray gun (Hypro 3381-10). Great for winter anti-ice/deicing of sidewalks and other tight places, and for summer weed spraying.
All necessary plumbing including 2" drain-fill valve,
1-1/2" suction, bypass with relief valve & jet agitation system.
Includes DU PB80R spray boom standard with 12 brass solid stream nozzles (fan nozzles & stainless boom also available). Boom snaps into standard 2" receiver hitch.
Complete control systems included. See below.

* This Rate Control System includes SCS203 console, 1" regulating valve and 1" full port boom on/off valve.
** Raven Automatic Rate Control System includes DCS 400 console, 1-1/2" flow meter, 1-1/2" regulating valve & 1" full port on/off valve & GPS speed sensor.

For Anti-ice/De-ice spraying, 200 Series Systems will cover one lane at up to 50 Gallons Per Lane-Mile at 30 MPH or up to 30 Gallons per Lane Mile at 50 MPH.

Many options available & other booms also available. Please call 1-888-677-5054 for more information.
