Steam Hoses

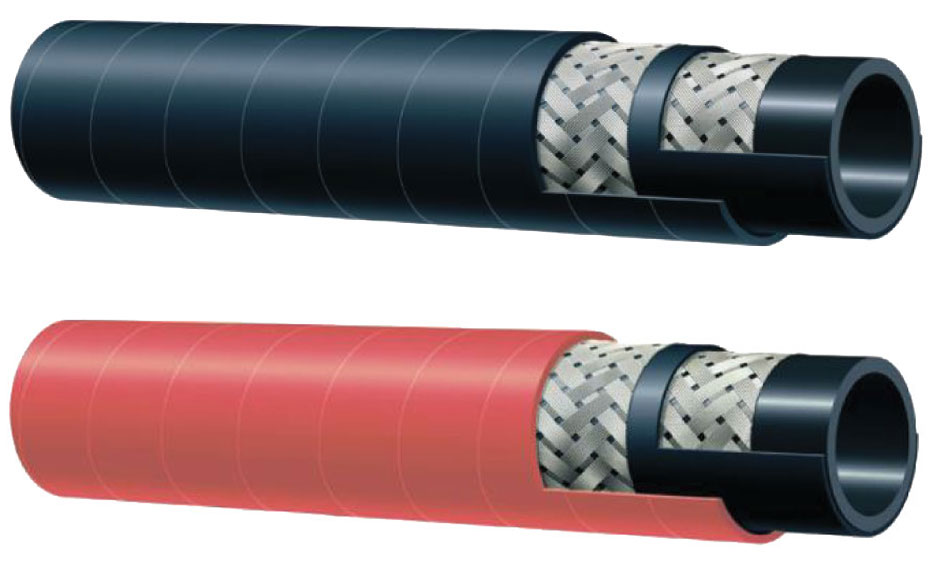

The Alfagomma T340 Series from Kuriyama is a general steam transfer hose that is rated up to 270PSI and 410°F. Designed for transfer of saturated steam. This hose series has a black (available in red T340AH) EPDM heat-resistant, wrapped cover. The cover is pin-pricked to allow for venting. Not recommended for washdown applications where detergents or oils are present. General use steam hose used in superheated steam will shorten hose life. For superheated steam applications, see T341 (Chlorobutyl) Series. Proper draining after each use will increase service life. Available in Black/Red Covers for both T340 and T341 Series. Not all sizes/covering options shown – Call for Details. Factory Premade Assemblies Available – Call for Details.

Working Pressure: 270PSI Max
Temperature: 410°F Max
Cover: Heat-resistant EPDM, Pin-Pricked
Tube: Extruded heat resistant EPDM (T340)/heat-resistant Chlorobutyl (T341)
Reinforcement: Wire Braid

* T341 Rated for superheated steam applications (Chlorobutyl Tube)
† Sold in 100’ RL Only

Part No.	Catalog	Description	Price
SKU: TFT340AA-1	Catalog: E0312	Description: Steam Hose, 1", Black, 10", Bend Radius, Two Wire, 25% - 100'	Price: Save! 25% on 100 $8.00 / FT	i h
SKU: TFT340AA-1/2	Catalog: E0312	Description: †Steam Hose, 1/2", Black, 5" Bend Radius, Single Wire	Price: $590.00 / RL	i h
SKU: TFT340AA-2	Catalog: E0312	Description: †Steam Hose, 2", Black, 20", Bend Radius, Two Wire	Price: $1,550.00 / RL	i h
SKU: TFT340AA-3	Catalog: E0312	Description: †Steam Hose, 3", Black, 30", Bend Radius, Two Wire	Price: $2,750.00 / RL	i h
SKU: TFT340AA-3/4	Catalog: E0312	Description: Steam Hose, 3/4", Black, 7-1/2" Bend Radius, Single Wire, 25% - 100'	Price: Save! 25% on 100 $6.40 / FT	i h
SKU: TFT341AH-1-1/2	Catalog: E0312	Description: †Steam Hose, 1-1/2", Red, 15" Bend Radius, Two Wire	Price: $1,090.00 / RL	i h
SKU: TFT341AH-1-1/4	Catalog: E0312	Description: †Steam Hose, 1-1/4", Red, 12-1/2" Bend Radius, Two Wire	Price: $1,080.00 / RL	i h
