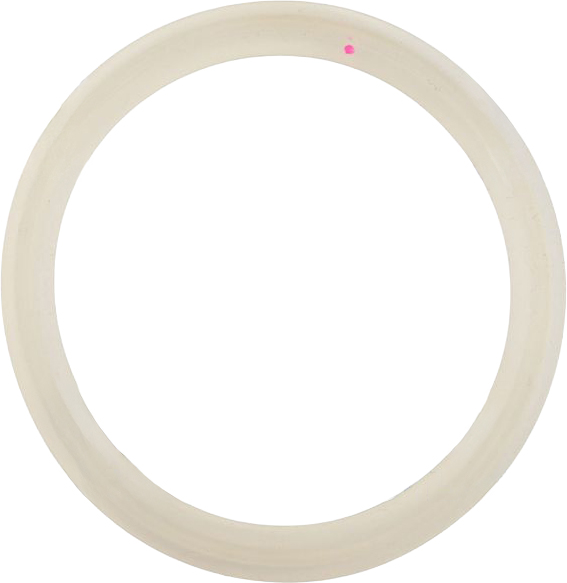

Tri-Clamp Gaskets

Variety of material offerings. Listed below are standard gasket options. For Viton® (FKM) use suffix '-V'. 3-A Sanitary Certified Gaskets. Temperature Range: Buna (-25°F to 225°F), EPDM (-40°F to 275°F), Viton®/FKM (-15°F to 375°F), Silicone (-50°F to 400°F), PTFE (-10°F to 300°F). See Gasket Sizing Guide for Reference. Larger Size Gaskets (Up to 12") Available. Metal Detecting Gaskets & Screen Gaskets Available – Call for Details.

Ordering Directions:
For EPDM use suffix '-E'. For Buna, use suffix '-B'. For Teflon® (PTFE) use suffix '-T'

Sanitary Code

• Buna: 40MPU

• EPDM: 40MPE

• FKM: 40MPSFY

• PTFE: 40MPG

• Silicone: 40MPX


* Larger Sizes Available – Call for Details
