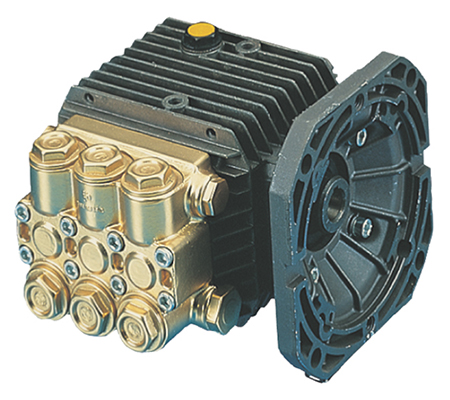

    Triplex Plunger Pump, Direct Drive: MAX 2.1 GPM, 1500 PSI, 1750 RPM

    TT Series 51 Triplex Plunger Pumps with Hollow Shaft (Flanged for Direct Couple to Electric Motor). NEMA-56C.

    • Forged brass manifold
    • Die-cast anodized aluminum, oil-bath crankcase
    • Solid ceramic plungers with continuously lubricated packings
    • The original Interpump unitized, stainless steel, K01 inlet and outlet valves
    • Ideal for all general cleaning, RO and misting applications
    • Comes standard with NEMA 56C electric motor mounting flange
    • Also available in "L" left-handed versions

    Manufacturer: General Pumps
    SKU: IPT9051EBF
    VIEW CATALOG PAGE E0640
    $347.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Products specifications
    Pump Type Plunger
    Shaft Type Hollow
    Inlet Size 3/8"
    Outlet Size 1/4"
    Shaft Size 5/8"
    Inlet Connection FPT
    Outlet Connection FPT
    Max GPM 2.1
    Max PSI 1500
    Motor Max RPM 1750
    Drive Electric Motor
    Manufacturer Part Number T9051EBF

    Additional Information

    Maximum Volume: 2.11 GPM
    Maximum Discharge Pressure: 1500 PSI
    Maximum Pump Speed: 1750 RPM
    Maximum Inlet Pressure: 125 PSI
    Maximum Inlet Vacuum: 3 ft. water (2.6 Hg)
    Plunger Bore: .591 in. / 15 mm
    Plunger Stroke: .370 in. / 9.4 mm
    Oil Capacity: 11.2 oz.
    Maximum Fluid Temperature: 165 Deg. F
    Inlet Port Thread: 3/8-19 BSPP-F
    Discharge Port Thread: 1/4-19 BSPP-F
    Shaft Diameter: 5/8 in. / 16 mm
    Weight: 11.5 lbs.
    Dimensions: 7.0" x 7.2" x 5.5"
