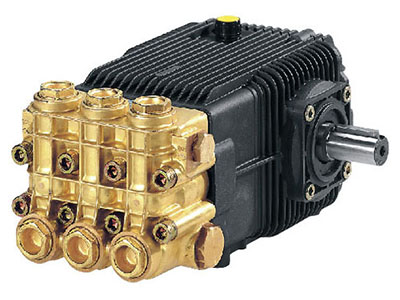

Triplex Plunger Pump: MAX 11.0 GPM, 2200 PSI, 1450 RPM (24mm Shaft)

Industrial Triplex Plunger Pumps

Engineered for powerful, long-lasting, reliable performance in even the most demanding work environments, AR triplex plunger pumps are designed for a wide variety of commercial and industrial applications. The industrial triplex plunger pumps are built from high-strength, die-cast aluminum and feature a forged brass head and valve covers for excellent wear and corrosion resistance.

Available in either pulley or direct drive for electric motors or gas engines. Extra-thick solid ceramic plungers and stainless-steel valves, seats, and springs ensure this triplex high-pressure washer pump performs season after season. AR pressure washer pumps are low-maintenance, energy-efficient solutions for many high-pressure systems, delivering superior performance and long-lasting durability. Ideal for a wide array of industrial cleaning operations, car/truck washes, pressure wash applications, and more!

*Plunger pump rails are not included and must be ordered separately if needed.

Technical Specs:

Type: Plunger
Pump Body Material: Die-cast aluminum with forged brass head
Inlet Size/Type: 3/4" FPT
Outlet Size/Type: 3/8" FPT
Max GPM: 13.0 GPM
Max PSI: 2,200 PSI
Seal Material: Viton®
Shaft Type: Solid
Shaft Size (OD Diam): 24 mm
Drive Type: Pulley or Direct Drive Electric Motor/Gas Engine
Max RPM: 1450 RPM
Drive Horsepower: 19.9 EBHP
Max Fluid Temp: 140° F

Standard Features:

High strength, forged brass manifolds
Aluminum oxide ceramic plungers
Stainless steel valves, seats, and springs
Continuously lubricated seals and V-packings
Triple lip oil seals
Extra-long connecting rods made from a special alloy
Die-cast aluminum crankcases with oversized cooling fans
Premium bearings for exceptional load support

AR Plunger Pumps are designed for a wide variety of industrial cleaning, car/truck wash and pressure wash applications. Available in pulley or direct drive for electric motor or gas engines.

Manufacturer:

SKU: ARXWL50.15N

VIEW CATALOG PAGE E0038

Call for pricing
