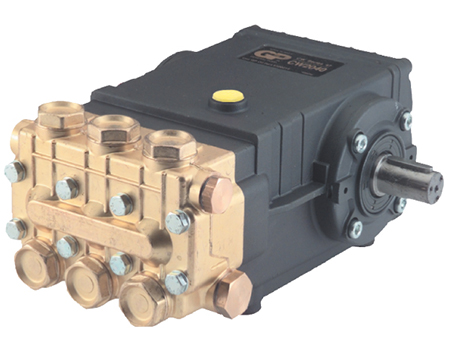

    Triplex Plunger Pump, Pulley Drive: MAX 5.0 GPM, 3000 PSI, 1250 RPM

    Car Wash Pump

    FEATURES
    • The preferred pump frame in the car wash self-service industry
    • Forged brass manifold
    • Large-capacity, die-cast, anodized aluminum oil-bath crankcase
    • Over-sized connecting rods for maximum life
    • Heavy-duty tapered roller bearing.
    • Solid ceramic plungers with continuously lubricated packings
    • Unitized stainless steel inlet and discharge valves
    • Available in left-handed "L" version
    * NICKEL - Plated Brass Manifold.

    ** BRASS Manifold.
    Manufacturer: General Pumps
    SKU: IPCW3040
    VIEW CATALOG PAGE E0039
    $806.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Products specifications
    Pump Type Plunger
    Inlet Size 1/2"
    Outlet Size 3/8"
    Shaft Size 24mm
    Inlet Connection FPT
    Outlet Connection FPT
    Max GPM 5
    Max PSI 3000
    Max Temp (Deg. F) 165
    Motor Max RPM 1250
    Manufacturer Part Number CW3040

    Additional Information

    Maximum Volume: 5.0 GPM
    Max. Discharge Pressure: 3000 PSI
    Maximum Pump Speed: 1250 RPM
    Maximum Inlet Pressure: 125 PSI
    Bore: .787 in. / 20 mm
    Stroke: .630 in. / 16 mm
    Crankcase Oil Capacity: 40.6 oz.
    Maximum Fluid Temperature: 165 Deg. F
    Inlet Port Thread: 1/2-14 BSPP-F
    Discharge Port Thread: 3/8-19 BSPP-F
    Shaft Diameter: .945 in. / 24 mm
    Weight: 32 lbs.
    Dimensions: 12.2 x 9.2 x 7.2 in.

    Triplex Plunger Pumps from General / Interpump. Available in Pulley Drive or Direct-Drive Designs. Maximum operating temperature on most pumps is 165° F. Maximum inlet pressure is 125 PSI. 5 year limited warranty on all pumps and a lifetime warranty on manifolds against damage from freezing.
