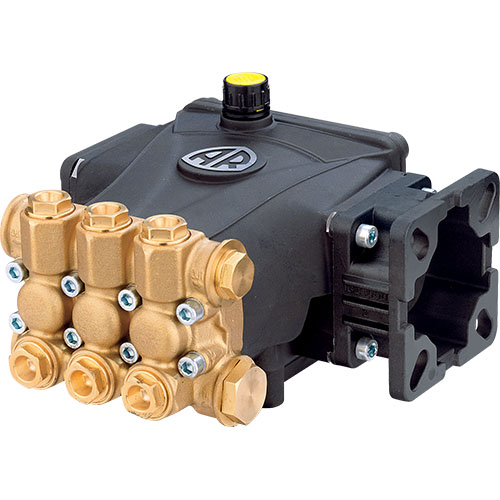

    Triplex Plunger Pump with Flange: MAX 2.5 GPM, 2700 PSI, 3400 RPM (3/4" Hollow Shaft)

    Industrial Triplex Plunger Pumps

    Standard with GAS Mounting Flange.
    Shaft: 3/4" Hollow
    Max LMP: 9.5
    Max Bar: 186
    Power EBHP: 4.6
    Max Temp: 140 Deg. F
    Bore Dia.: 15 mm
    Stroke: 5.6 mm
    Oil Capacity: 9.81 oz.
    Inlet Thread: 1/2" F
    Discharge Thread: 3/8" F
    AR Plunger Pumps are designed for a wide variety of industrial cleaning, car/truck wash and pressure wash applications. Available in pulley or direct drive for electric motor or gas engines.
    SKU: ARRCV25G27D-F7
    VIEW CATALOG PAGE E0038
    $298.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Products specifications
    Pump Type Plunger
    Shaft Type Hollow
    Inlet Size 1/2"
    Outlet Size 3/8"
    Shaft Size 3/4"
    Inlet Connection FPT
    Outlet Connection FPT
    Max GPM 2.5
    Flow Rate 2.5 GPM @ 2700 PSI
    Max PSI 2700
    Max Temp (Deg. F) 140
    Motor Max RPM 3400

    Additional Information

    Standard Features Include:
    • High strength, forged brass manifolds
    • Aluminum oxide ceramic plungers
    • Stainless steel valves, seats and springs
    • Continuously lubricated seals and V-packings
    • Triple lip oil seals
    • Extra long connecting rods made from a special alloy
    • Die-cast aluminum crankcases with oversized cooling fins
    • Premium bearings for exceptional load support
    • Maximum 140° F.
    • Ports on most pumps are 1/2" inlet by 3/8" outlet
    • Large flow pumps have larger ports
    • Rails are not included and must be ordered separately if needed.
