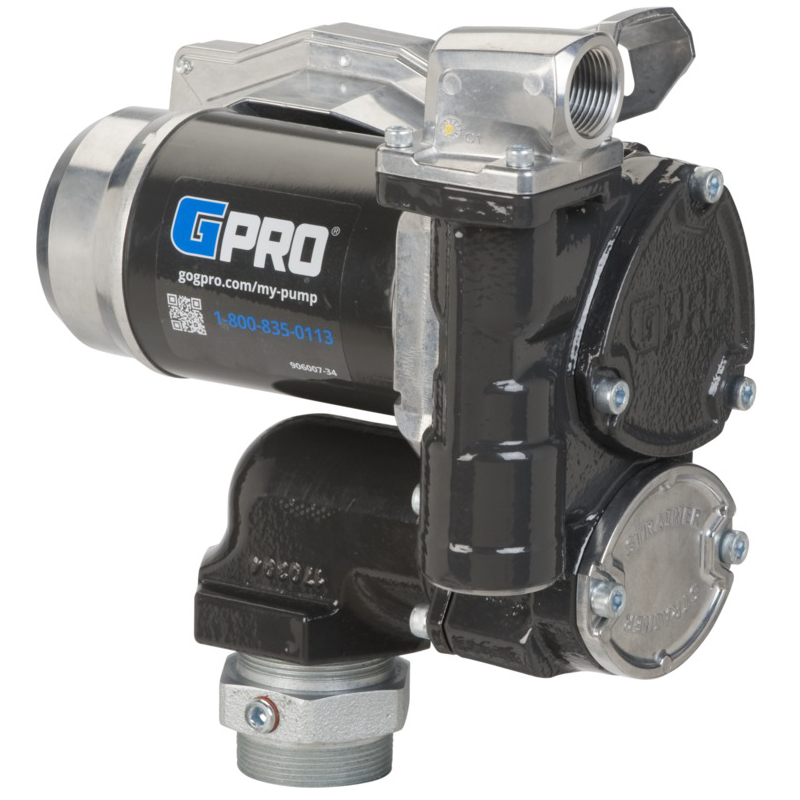

Picture of V25 Fuel Transfer Pump ONLY, 25 GPM

V25 Fuel Transfer Pump ONLY, 25 GPM

The V25 Pump will deliver True 25 GPM. Its unique rotary gear design ensures a long product life with minimal maintenance. The V25 features an innovative design with simplified connection points that make attaching accessories fast and easy. Quick-Fit Accessories feature a simple four-bolt connection with no leak flange and o-ring, making filter and meter both quick and easy-to-install.

Benefits:

True GPM. Full 25 GPM at the automatic nozzle for fast refueling.
Diecast Aluminum Housing. Corrosion-resistant, lightweight (19 lbs.) & low stress on tank.
Rotary Gear Design. Fewer moving parts equals less friction and less wear on components.
Spin Collar Mount. Allows much easier installation and pump orientation.
Circuit Breaker Protection. Prevents overheating and helps extend pump life.
2 Year Warranty.

Manufacturer:

SKU: GIV25-012PX

VIEW CATALOG PAGE E0278

$990.00 / EA

Qty:

i h

Additional Information

Features:

Duty Cycle. 30 min. ON & 30 min. Off.
Electrical: 12V (DC) with 40 amp circuit breaker switch with a current draw of 34 amps. 40 amp fuse.
Power Cord. 18 ft., 12/2 AWG.
Operating Temperature. -20° F. to +125° F.
Mechanical Connections. Inlet is 2" MPT Spin Collar with 1" FPT Inlet for Suction Tube & Outlet is 1" FPT.
UL & CSA Listed. For Use with Diesel (to B20), Gasoline & Ethanol Blends (to E15).

Quick-Fit Accessories feature a simple four-bolt connection with no leak flange and o-ring, making filter and meter both quick and easy-to-install.
