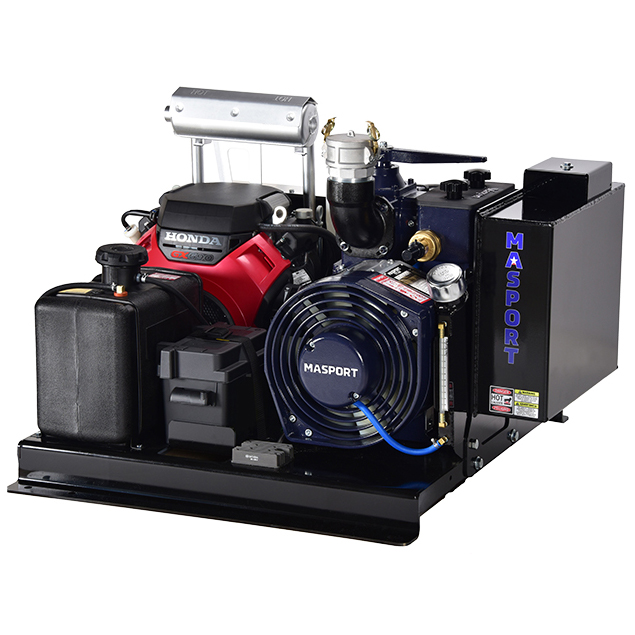

Vacuum / Pressure Pump, Model VIPER, Pro Pack Plus, 350 CFM, Fan-Cooled, 3" FPT Ports, Electric Start, 22 HP, Belt Driven

Many Masport vacuum pumps are offered in package systems identified as Pro Pack and/or Pro Pack Plus (Complete). Both options have a Honda engine (electric start) as the drive option (other engine drive options available – call for specifications) pump packages which are mounted onto a base plate. The Pro Pack is a basic system that includes vacuum pump, electric start Honda engine, battery, and remote-mounted oil reservoir. The designation of the "Complete" or the Pro Pack "Plus" system(s) identifies all basic system components with the addition of pressure and vacuum relief valves, pressure/vacuum gauge, inlet filter, scrubber, and separator/muffler – unless otherwise noted. Please call with specifications for more product inquiries – not all available product options are listed. 1-Year performance warranty on Masport vacuum pumps.

The VIPER Pro Pack Plus is available in two different belt drive options – 22 HP GX690 Honda electric start gas engine or 24.5 HP Deutz electric start diesel engine (call for specifications). The units include fuel tank, vacuum relief valve, inlet filter, battery, oil reservoir, flushing tank, and separator / muffler. These units are designed for tank sizes of 4,000+ gallons. The VIPER Vacuum / Pressure Pump is a fan-cooled unit with 3" FPT inlet/outlet ports. There is a ¼" FPT vane flushing port.

Maximum of 350 CFM
Continuous Vacuum Rating: 22"
Continuous Pressure Rating: 20 PSI

Manufacturer:

SKU: MAVIPER-PPC

VIEW CATALOG PAGE E3576

$14,085.00 / EA

Qty:

i h

Vacuum / Pressure Pump, Model VIPER, Pro Pack Plus, 350 CFM, Fan-Cooled, 3" FPT Ports, Electric Start, 22 HP, Belt Driven
