Vehicle Side Blast & Top Rinse System

Drive-Through High Pressure Rinse Systems are a great way to clean vehicles or machinery. Protect your vehicle investments and increase vehicle life. Pump units are activated by thru-beam photo eyes when vehicles enter the rinse bay and shut-off as vehicles leave. No need to leave the vehicle.

Spinning Stabilizer Nozzles are standard on all cleaning pans and feature high impact cleaning with excellent coverage for a variety of cleaning needs. Pre-spray or presoak chemical systems are also available if needed. Call for information.

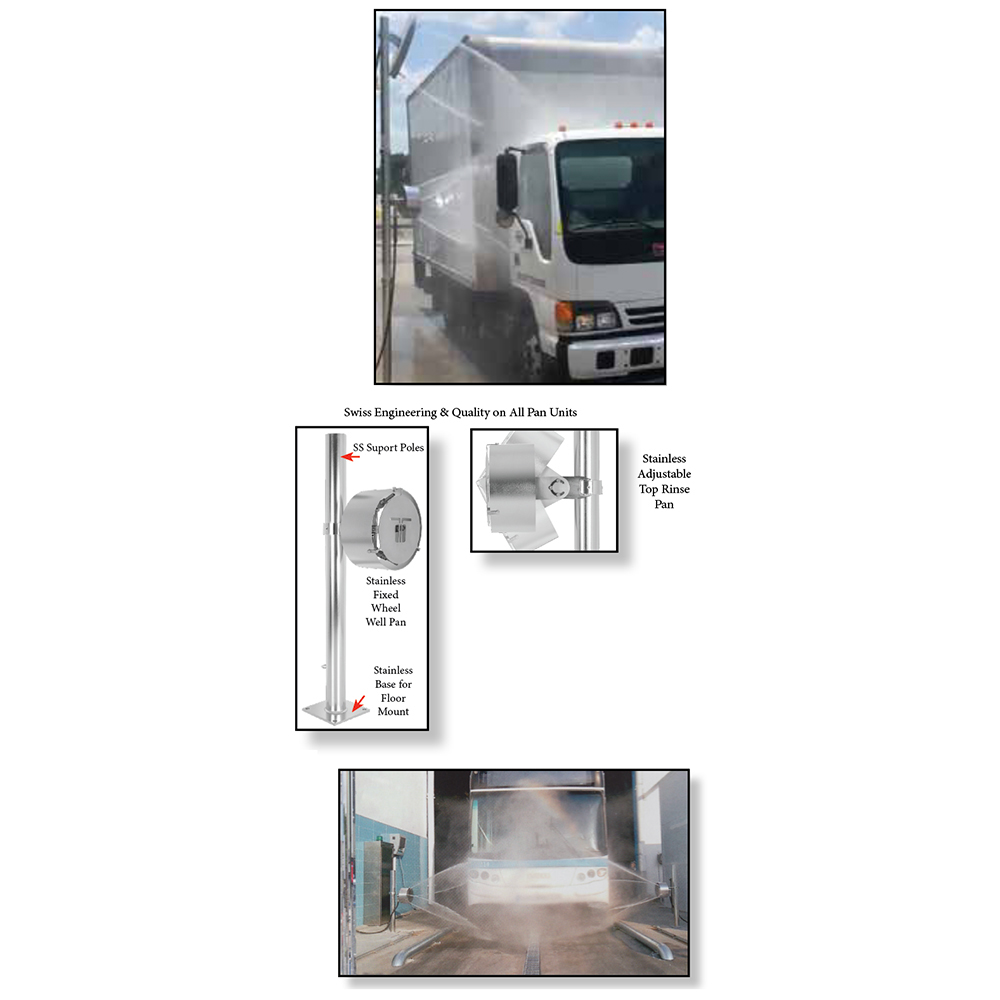

Spray Pans for side blast and top rinse system are supported by 7 ft. stainless support stands that are to be permanently mounted in the bay based on your vehicle size requirements. Effective coverage is 38" when mounted 36" from vehicle.

SBR271000 Side Blast / Top Rinse Systems are rated to 27 GPM @ 1000 PSI and features a 20 HP / 3 Phase pump/motor unit mounted on a stainless baseplate with stainless belt guard, pressure regulator, (2) stainless steel rotating side blast pans, (2) stainless steel rotating top/side rinse pans, (2) stainless steel pan support stands and (1) photo eye activation set with stainless bay stands. High impact stabilizer nozzles are included in all pans.

Swiss Engineering & Quality on All Pan Units
High pressure feed lines from pumps to bays are available, but not included as distance from pump station to wash pans will vary by location.

Manufacturer:

SKU: DUSBR271000

VIEW CATALOG PAGE E1286

$18,050.00 / EA

Qty:

i h

Vehicle Side Blast & Top Rinse System

Shipping costs will be invoiced at time of shipment for all orders shipping to locations outside of the contiguous United States including Hawaii and Alaska. If you require a freight quote, please call us at 1-888-677-5054.
