Vehicle Undercarriage Rinse System, with Side Blast, 27 GPM @ 1000 PSI, 20 HP, 3 Phase, 480V

Additional Information

Above Ground,Under Carriage Rinse Systems from Dultmeier Sales are designed for high pressure rinsing and cleaning the underside of trucks, vans, cars, fleet vehicles, 18 wheelers, DOT vehicles and more. Removes dirt, salt, debris and extends the life of your vehicles. Also reduces service and safety checks on over-the-road transport vehicles and trucks.

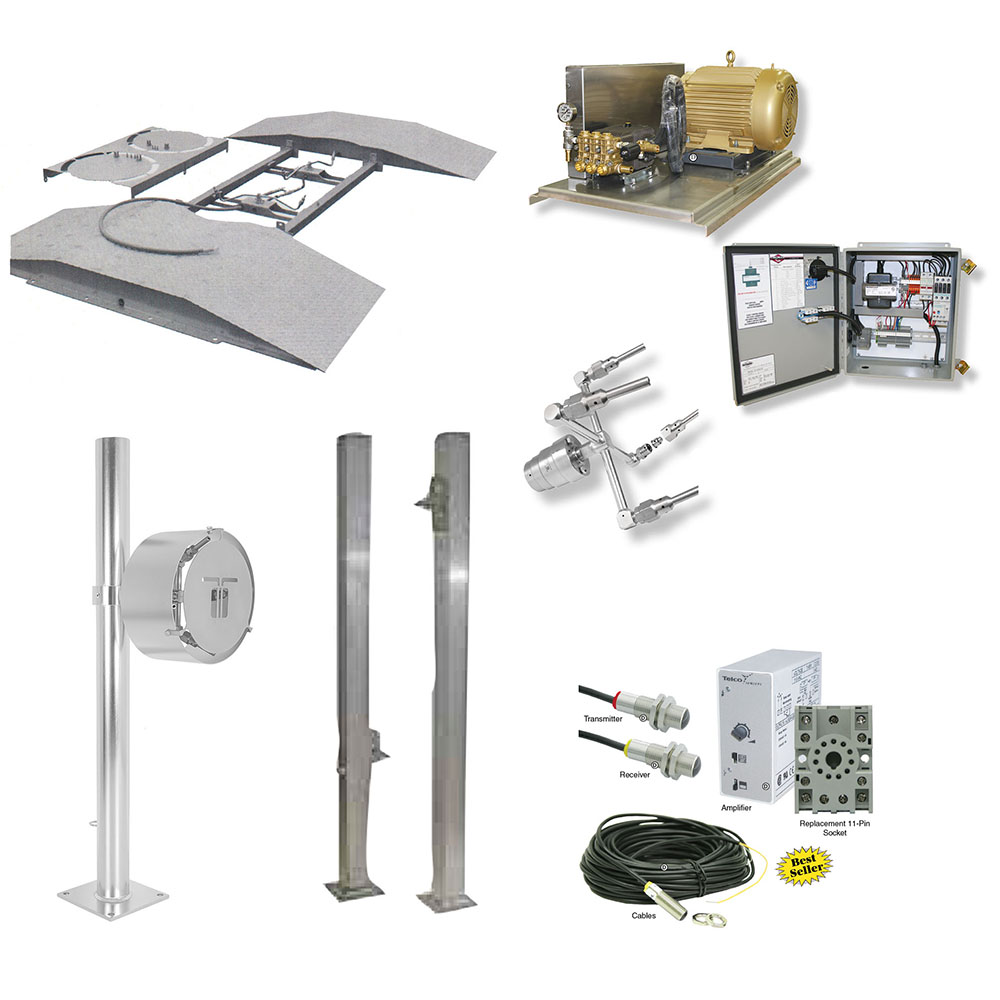

Systems feature a unique Stainless Ramp unit that allows for permanent mounting in almost any location or application, (ramp can be moved if needed). Complete pump/motor packages are standard with photo eye activated electrical panels.

All units come with high flow "Stabilizer Nozzles" which greatly enhance impact and cleaning ability and can effectively clean 4 to 5 feet from the ramp surface. Ramp dimensions are 104" wide x 67" long x 5" high on 10 and 20 GPM systems. For systems with side wheel well cleaners they are 200" wide x 67" long x 5" high.

Model UCWB271000-OTC480 features a 16 GPM undercarriage wash ramp and 2 high pressure, stainless steel rotating side blasters rated to 6 GPM each. Stainless steel 39" poles are also included to support side blast cleaners. This design allows for under carriage cleaning with the addition of wheel well, tire and rim cleaning, 480 volt. Photo eye activation.

Note: Photo eyes and stands must be mounted near the undercarriage ramp. 50' power cord is included and must be protected and run from photo eye units to electrical panel.
