    Gate Valves, Steam Rated

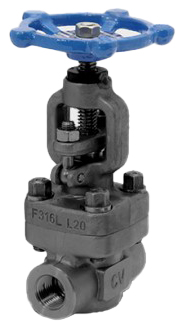

    The 28 Series Gate Valve line from Chicago Valves & Controls is designed for higher temperature/pressure applications like steam. The series is Class 800 rated and is available in either forged steel or 316L stainless-steel. The 28 Series valve line has a rising stem design with a bolted bonnet that houses the graphite valve packing. Valves are standard with threaded NPT ends but available in socket weld or thread x socket weld – call for details.

    Technical Data:
    • Body Material: Forged Steel or 316SS
    • Stem: 316LSS
    • Packing: Graphite
    • Pressure Rating Max: 1975PSI
    • Temperature Rating Max: 850°F
    • Inlet/Outlet: NPT or Socket Weld
    • Standards: Test API 598 / Basic Design API 602

    Manufacturer: Chicago Valves
    Part No. Catalog Description Price
    Picture of Gate Valve, Steam Rated, 1-1/4" FPT Ends, Forged Steel
    SKU: GNTE800-125 Catalog: E3619 Description: Gate Valve, Steam Rated, 1-1/4" FPT Ends, Forged Steel Price: $103.00 / EA
    i h
    Picture of Gate Valve, Steam Rated, 2" FPT Ends, Forged Steel
    SKU: GNTE800-200 Catalog: E3619 Description: Gate Valve, Steam Rated, 2" FPT Ends, Forged Steel Price: $169.00 / EA
    i h
    Picture of Gate Valve, Steam Rated, 1/4" FPT Ends, Forged Steel
    SKU: GNTE800-025 Catalog: E3619 Description: Gate Valve, Steam Rated, 1/4" FPT Ends, Forged Steel Price: $47.50 / EA
    i h
    Picture of Gate Valve, Steam Rated, 3/8" FPT Ends, Forged Steel
    SKU: GNTE800-038 Catalog: E3619 Description: Gate Valve, Steam Rated, 3/8" FPT Ends, Forged Steel Price: $47.50 / EA
    i h
    Picture of Gate Valve, Steam Rated, 1/2" FPT Ends, Forged Steel
    SKU: GNTE800-050 Catalog: E3619 Description: Gate Valve, Steam Rated, 1/2" FPT Ends, Forged Steel Price: $47.50 / EA
    i h
    Picture of Gate Valve, Steam Rated, 3/4" FPT Ends, Forged Steel
    SKU: GNTE800-075 Catalog: E3619 Description: Gate Valve, Steam Rated, 3/4" FPT Ends, Forged Steel Price: $53.00 / EA
    i h
    Picture of Gate Valve, Steam Rated, 1" FPT Ends, Forged Steel
    SKU: GNTE800-100 Catalog: E3619 Description: Gate Valve, Steam Rated, 1" FPT Ends, Forged Steel Price: $72.00 / EA
    i h
    Picture of Gate Valve, Steam Rated, 1-1/2" FPT Ends, Forged Steel
    SKU: GNTE800-150 Catalog: E3619 Description: Gate Valve, Steam Rated, 1-1/2" FPT Ends, Forged Steel Price: $123.00 / EA
    i h
