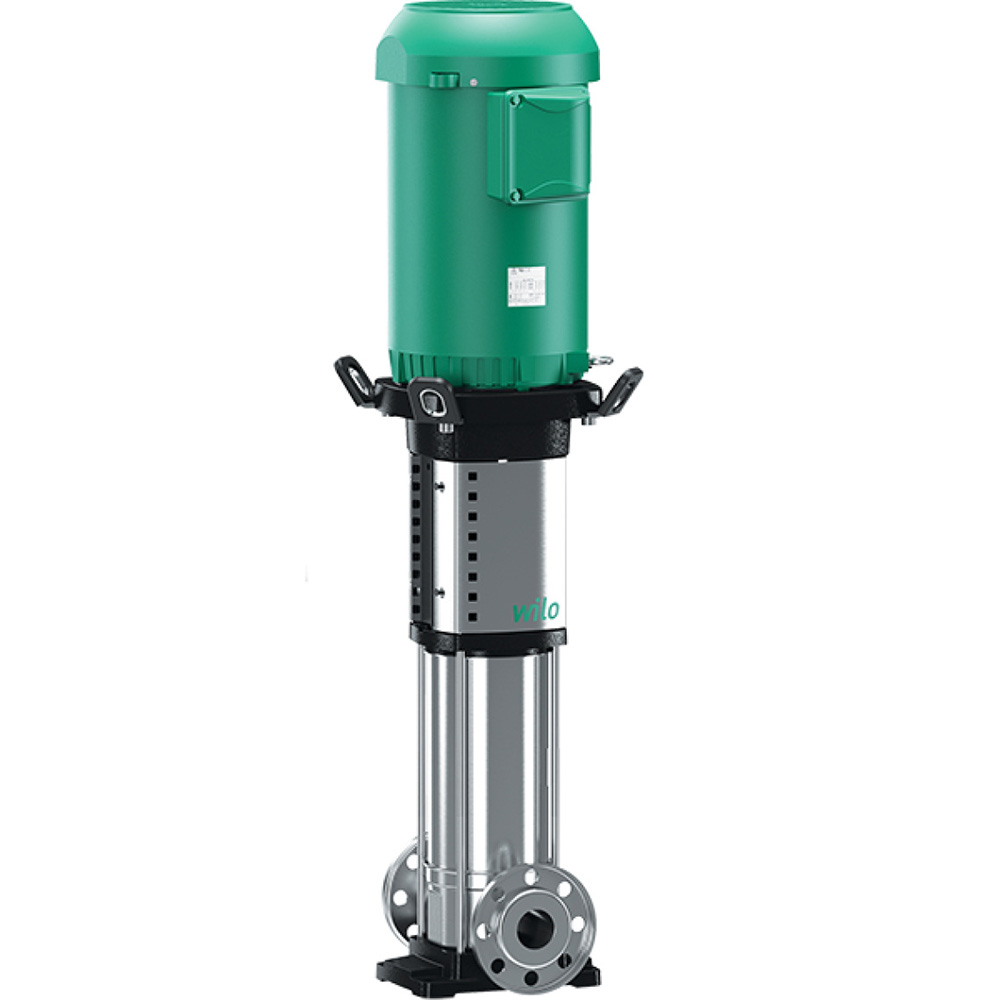

    Helix Vertical Multistage Centrifugal Pumps, Models V10 - V80

    The Helix V Vertical Multistage Centrifugal Pumps are designed to serve a wide variety of markets and are used in applications such as water supply and pressure boosting, industrial circulation systems, water processing, water cooling circulation systems, washing systems and irrigation. For multi-pump systems see CO-Helix.

    Features:
    • Non-self-priming, high pressure, inline connections
    • User-friendly "X-Seal" cartridge mechanical seal which enables quick and easy maintenance
    • Integrated thrust bearings for reduced motor stress
    • Pump Lifting Lugs
    • Heavy Duty Pump Base
    • Available with integrated frequency converter and electronically commutated (EC) motor for enhanced energy efficiency (see Wilo Excel).

    * "-H" Suffix Denotes High Pressure Model. Model Number Denotes GPM at Best Efficient Point
    Part No. Catalog Description Price
    Picture of Helix Vertical Muti-Stage Centrifugal Pump, Model V20, 16 Stages, EPDM, 5 HP, 1-1/4" Flange Size, 18 GPM @ 215 PSI, 208-230/460 Volt
    SKU: WO2700182-H Catalog: E3524 Description: Helix Vertical Muti-Stage Centrifugal Pump, Model V20, 16 Stages, EPDM, 5 HP, 1-1/4" Flange Size, 18 GPM @ 215 PSI, 208-230/460 Volt Price: $3,381.00 / EA
    i h
    Picture of Helix Vertical Muti-Stage Centrifugal Pump, Model V30, 16 Stages, EPDM, 7.5 HP, 1-1/4" Flange Size, 30 GPM @ 238 PSI, 208-230/460 Volt
    SKU: WO2700196-H Catalog: E3524 Description: Helix Vertical Muti-Stage Centrifugal Pump, Model V30, 16 Stages, EPDM, 7.5 HP, 1-1/4" Flange Size, 30 GPM @ 238 PSI, 208-230/460 Volt Price: $3,526.00 / EA
    i h
    Picture of Helix Vertical Muti-Stage Centrifugal Pump, Model V20, 16 Stages, EPDM, 5 HP, 1-1/4" Flange Size, 15 GPM @ 238 PSI, 575 Volt
    SKU: WO2700228-H Catalog: E3524 Description: Helix Vertical Muti-Stage Centrifugal Pump, Model V20, 16 Stages, EPDM, 5 HP, 1-1/4" Flange Size, 15 GPM @ 238 PSI, 575 Volt Price: $3,323.00 / EA
    i h
    Picture of Helix Vertical Muti-Stage Centrifugal Pump, Model V20, 18 Stages, EPDM, 5 HP, 1-1/4" Flange Size, 15 GPM @ 265 PSI, 575 Volt
    SKU: WO2700229-H Catalog: E3524 Description: Helix Vertical Muti-Stage Centrifugal Pump, Model V20, 18 Stages, EPDM, 5 HP, 1-1/4" Flange Size, 15 GPM @ 265 PSI, 575 Volt Price: $3,333.00 / EA
    i h
    Picture of Helix Vertical Muti-Stage Centrifugal Pump, Model V10, 11 Stages, EPDM, 2 HP, 1-1/4" Flange Size, 12 GPM @ 135 PSI, 208-230/460 Volt
    SKU: WO2700812 Catalog: E3524 Description: Helix Vertical Muti-Stage Centrifugal Pump, Model V10, 11 Stages, EPDM, 2 HP, 1-1/4" Flange Size, 12 GPM @ 135 PSI, 208-230/460 Volt Price: $2,638.00 / EA
    i h
    Picture of Helix Vertical Muti-Stage Centrifugal Pump, Model V10, 18 Stages, EPDM, 5 HP, 1-1/4" Flange Size, 12 GPM @ 225 PSI, 208-230/460 Volt
    SKU: WO2700817-H Catalog: E3524 Description: Helix Vertical Muti-Stage Centrifugal Pump, Model V10, 18 Stages, EPDM, 5 HP, 1-1/4" Flange Size, 12 GPM @ 225 PSI, 208-230/460 Volt Price: $3,318.00 / EA
    i h

    Additional Information

    Technical Specifications:

    • NSF 61 Certified for Potable Water
    • Power Connections: 3 PH – 208-230/460/575V
    • Fluid Temperature Range: -5°F to 250°F
    • Pressure Range: 232 PSI for Normal Models to 363 PSI for High Pressure Models
    • ANSI Class 300# Flange Connections
    • 304 Stainless Steel Construction (Cast Iron Available)
    • Max Flow Rate: 130 GPM

    • 6" Impeller Diameter
    • Max Head: 750 ft
    • EPDM Seals Standard (FKM Available)
    • TEFC Motors Standard (ODP Available Upon Request)
    • 304 Stainless Steel Construction Certified to NSF/ANSI 61
    • Stainless Steel Volute, Impeller, & Shaft
    • Tungsten Carbide/EPDM (FKM Optional) Mechanical Seal
