    Petroleum Transfer Oil Hoses

    For Fuel Oil, Diesel, Commercial Gasolines
    Bio-Diesel to B20 & Ethanol to E15

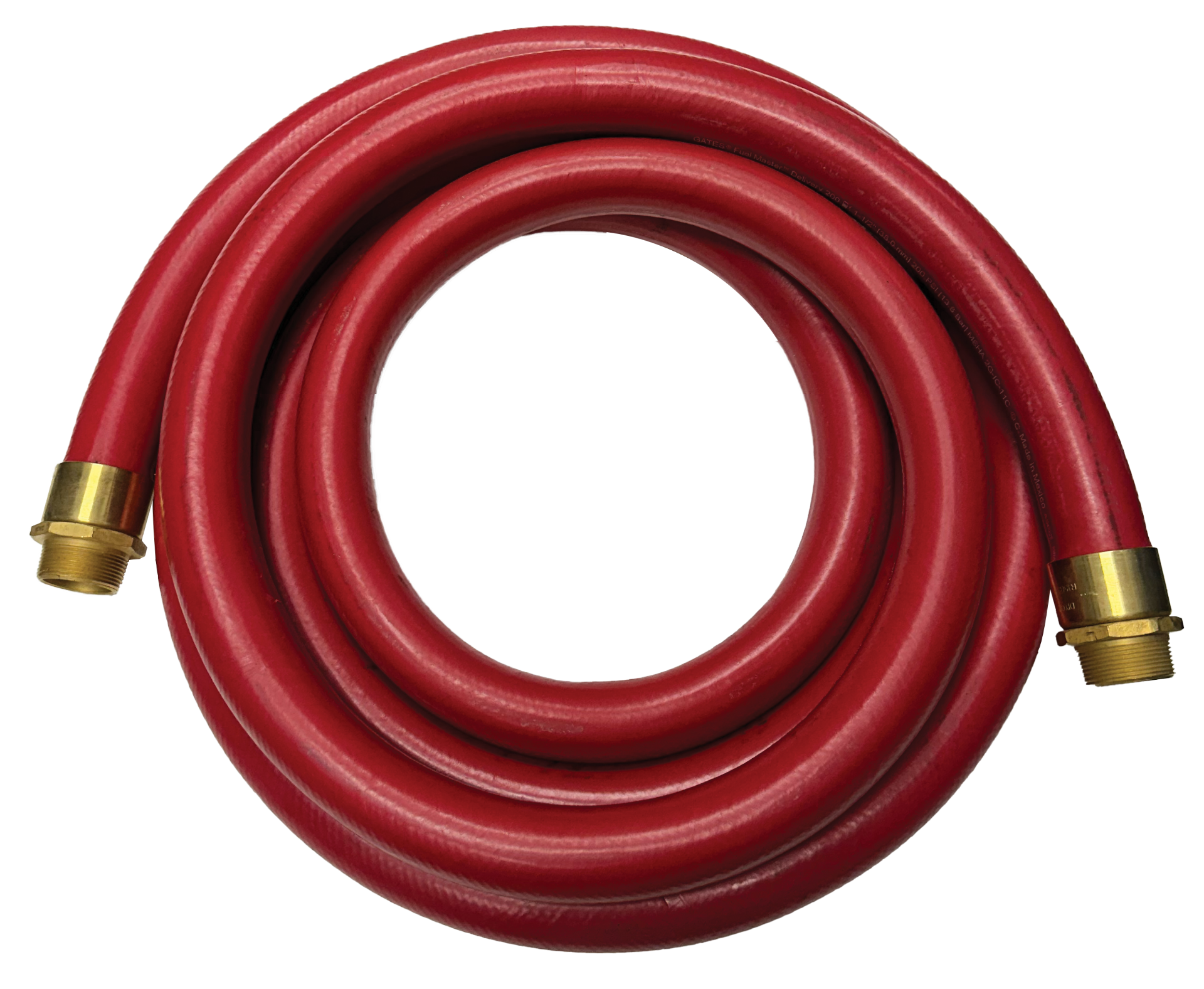

    Excellent for transferring diesel fuel, biodiesel (to B20), commercial gasolines and fuel oils. Hose remains flexible to -20° F. Abrasion-resistant and non-marking cover. All assemblies are fitted with crimped on brass ends (MPT standard, FPT and FPT swivels also available); no hose clamps. Intended primarily as discharge hose assemblies; rated to 200 PSI working pressure. Limited suction side use; vacuum rating to 10" Hg (1/3 of full vacuum).

    These hose assemblies can be made in any length up to 150' long. Simply specify diameter, overall length of hose assembly and MPT or FPT ends when ordering (Allow 1 to 2 weeks to ship on custom lengths).

    Call Us with Your Specifications.
    Part No. Catalog Tube Material Length Hose I.D. Hose O.D. Bend Radius Max PSI Min Temp (Deg. F) Max Temp (Deg. F) Color Application Price
    SKU: GA3221WM-1X35 Catalog: E1124 Tube Material: Nitrile Length: 35' Hose I.D.: 1" Hose O.D.: 1.5" Bend Radius: 8" Max PSI: 200 Min Temp (Deg. F): -40 Max Temp (Deg. F): 180 Color: Red Application: Petroleum Price: $404.00 / EA
    i h
    SKU: GA3221WM-1X25 Catalog: E1124 Tube Material:   Length:   Hose I.D.:   Hose O.D.:   Bend Radius:   Max PSI:   Min Temp (Deg. F):   Max Temp (Deg. F):   Color:   Application:   Price: $317.00 / EA
    i h
    SKU: GA3221WM-1-1/2X35 Catalog: E1124 Tube Material: Nitrile Length: 35' Hose I.D.: 1.5" Hose O.D.: 2.08" Bend Radius: 12" Max PSI: 200 Min Temp (Deg. F): -40 Max Temp (Deg. F): 180 Color: Red Application: Petroleum Price: $653.00 / EA
    i h
    SKU: GA3221WM-1-1/2X25 Catalog: E1124 Tube Material:   Length:   Hose I.D.:   Hose O.D.:   Bend Radius:   Max PSI:   Min Temp (Deg. F):   Max Temp (Deg. F):   Color:   Application:   Price: $524.00 / EA
    i h
    SKU: GA3221WM-1X50 Catalog: E1124 Tube Material:   Length:   Hose I.D.:   Hose O.D.:   Bend Radius:   Max PSI:   Min Temp (Deg. F):   Max Temp (Deg. F):   Color:   Application:   Price: $556.00 / EA
    i h
    SKU: GA3221WM-1-1/2X20 Catalog: E1124 Tube Material:   Length:   Hose I.D.:   Hose O.D.:   Bend Radius:   Max PSI:   Min Temp (Deg. F):   Max Temp (Deg. F):   Color:   Application:   Price: $444.00 / EA
    i h
    SKU: GA3221WM-1X30 Catalog: E1124 Tube Material:   Length:   Hose I.D.:   Hose O.D.:   Bend Radius:   Max PSI:   Min Temp (Deg. F):   Max Temp (Deg. F):   Color:   Application:   Price: $367.00 / EA
    i h
