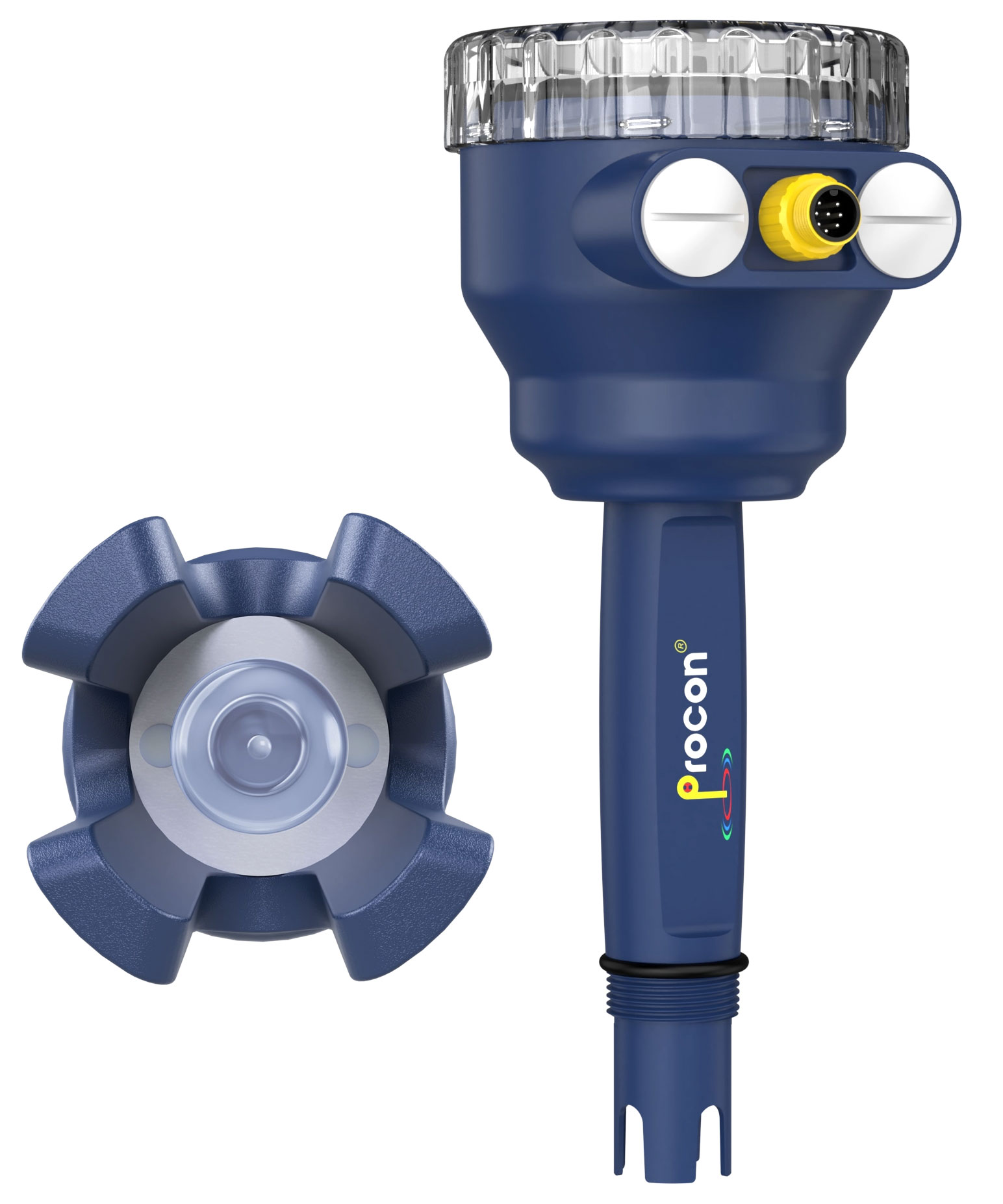

pH Sensors, P14G

The ProCon® pH Sensors from Icon Process Controls is a robust pH sensor line that is designed to bring versatility/long-term reliability and pair that combination with fast response times/high accuracy. These pH sensors are specifically engineered with double ceramic reference diaphragms – which provide highly responsive pH indication. Additionally, the double salt bridge junction, paired with the PTFE reference technology is the basis for all P14 series electrodes. The inner reference chamber is charged with potassium chloride (KCl) gel. All measurement functions: measuring electrode, temperature sensor, and inner reference chamber - are contained in one compact body. Available in 4-wire (use with ProCon® Controllers Only) or 2-wire flying leads. Standard cable length is 5m. There are other P14 Series pH Sensors available for HF Acid (P14H & P14F), Seawater (P14S), Desulfurization (P14D), Pure Water/Low Ion Concentration (P14P) – Call for Details. Analytical fittings (Saddles, Union Tees, etc) are available – Call for Details.

P14G Features:

• Measuring Range: 0 - 14pH
• Zero Potential: 7.00 ± 0.25
• Pressure Range: 0 – 90PSI
• Temperature Range: 14 - 176°F
• Temperature Sensor: Pt1000 (Standard) / Pt 100 Available
• Body Material: Polypropylene / PPS Ryton® Available
• Membrane Resistance: <600 MΩ
• Reference System: Ag / AgCl / KCl
• Liquid Junction: Porous Ceramic
• Double Salt Bridge System: Yes
• Connection Thread: ¾" MPT
• pH Sensors, P14G
• Enclosure: Flying Lead
• Output Options: 2-wire 4-20mA / 4-20mA + RS485 / 4-wire 4-20mA (ProCon® Controller Only)
• Blind Display
