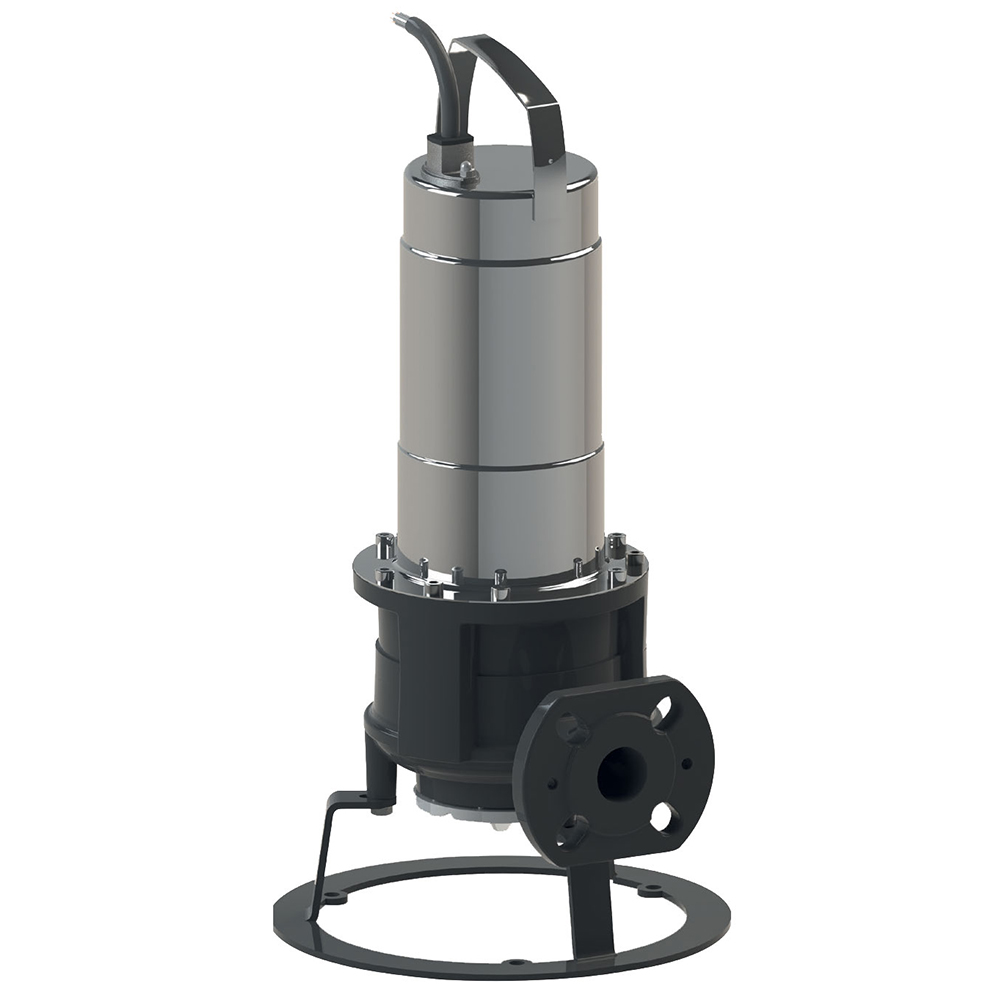

    Submersible Sewage / Wastewater Pumps, Rexa CUT, 85 GPM @ 10', Solids to 1-1/2"

    The Rexa CUT Series is an ideal choice for pressure sewer applications – either municipal or industrial – when pumping water containing sewage. The unique cutter design yields fine solids for non-clogging operation. This unit is highly resistant to obstructions and blockages. The Rexa CUT Series tops out at 85 GPM with a max head of 140 feet.

    • 304SS Motor Housing
    • Standard Buna-Nitrile Seal with Silicon-Carbide/Silicon-Carbide Heavy Duty Seal Face
    • Submerged Operating Mode: Continuous Duty
    • Power Connection Options: 1 PH, 230V, 60Hz / 3 PH, 230V, 60Hz / 3 PH, 460V, 60Hz
    • Maximum Solid Passage in this series is 1.5"
    • Power Cord Supplied


    Stands & Guides Rails Sold Separately - Call for Specifications Pump Base & Guide Rail Systems Available Upon Request
    Part No. Catalog Pump Type Body Material Seal Material Inlet Size Outlet Size Max Diam. Solids Inlet Connection Outlet Connection Max GPM Drive Motor HP Phase Voltage Price
    SKU: WO6082810 Catalog: E1248 Pump Type:   Body Material:   Seal Material:   Inlet Size:   Outlet Size:   Max Diam. Solids:   Inlet Connection:   Outlet Connection:   Max GPM:   Drive:   Motor HP:   Phase:   Voltage:   Price: $2,026.00 / EA
    i h
    SKU: WO6082811 Catalog: E1248 Pump Type:   Body Material:   Seal Material:   Inlet Size:   Outlet Size:   Max Diam. Solids:   Inlet Connection:   Outlet Connection:   Max GPM:   Drive:   Motor HP:   Phase:   Voltage:   Price: $1,948.00 / EA
    i h
    SKU: WO6082813 Catalog: E1248 Pump Type: Sewage Body Material: Stainless Steel Seal Material: Buna Inlet Size: 1-1/2" Outlet Size: 1-1/2" Max Diam. Solids: 1-1/2" Inlet Connection: Flange Outlet Connection: Flange Max GPM: 85 Drive: Electric Motor Motor HP: 2.8 Phase: 3 Voltage: 230 Price: $2,178.00 / EA
    i h
    SKU: WO6082815 Catalog: E1248 Pump Type:   Body Material:   Seal Material:   Inlet Size:   Outlet Size:   Max Diam. Solids:   Inlet Connection:   Outlet Connection:   Max GPM:   Drive:   Motor HP:   Phase:   Voltage:   Price: $2,287.00 / EA
    i h
    SKU: WO6082816 Catalog: E1248 Pump Type:   Body Material:   Seal Material:   Inlet Size:   Outlet Size:   Max Diam. Solids:   Inlet Connection:   Outlet Connection:   Max GPM:   Drive:   Motor HP:   Phase:   Voltage:   Price: $2,402.00 / EA
    i h
