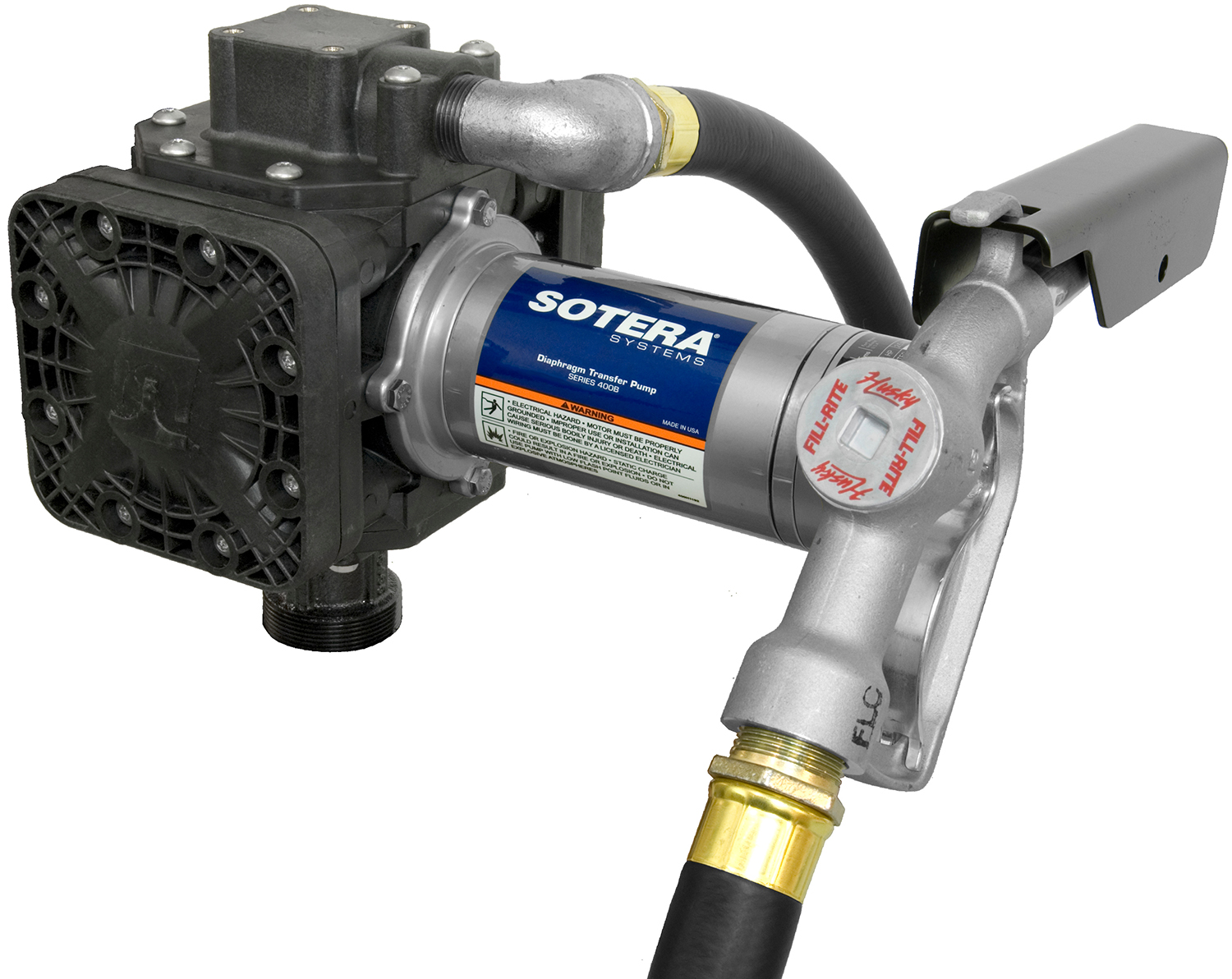

115 Volt Diaphragm Transfer Pump for Light Oils & Fuels, 13 GPM, with Hose & Manual Nozzle

FR400 Series · For Viscous Fluids & Fuels · Heavy Duty · UL Listed

Engineered for handling heavy viscous liquids and suspended solutions, the Sotera FR400 Series Diaphragm Transfer Pumps provide a complete transfer solution for your multi-viscosity applications. Featuring dual Santoprene diaphragms means the Sotera 400 Series delivers consistent, reliable performance regardless of load. This unique spring driven dual-diaphragm design allows transfer of viscosities over 1000 cps (SAE80-90W oil at 31 Deg. F.) as well as fluids containing particles up to 1/10" in diameter. The pump is self-priming, uses few simple parts for minimum wear movement, and can even be run dry without fear of damaging the pump.

Wetted materials are reinforced polypropylene and stainless steel for maximum chemical and corrosion resistance across a wide range of industrial and agricultural liquids. Compatible fluids include but are not limited to lube oils, gear oils, suspended fluids, diesel fuels, ag chemicals and fertilizers, mild acids, and soaps. Not for use with gasolines or fluids with low flash points.

The FR450 fuel pump features a 1" FPT inlet x 1" FPT outlet and a 1/4 Hp, 115-volt motor with thermal overload protection. Pump kit comes complete with a 1" cast aluminum manual nozzle and 1" x 12' fuel hose (with static wire), bung adapter, and 6.5' heavy-duty 3-wire battery clips. Telescoping steel suction pipe is also included. Max flowrate is 13 GPM (1 cSt liquids).

Specifications:
