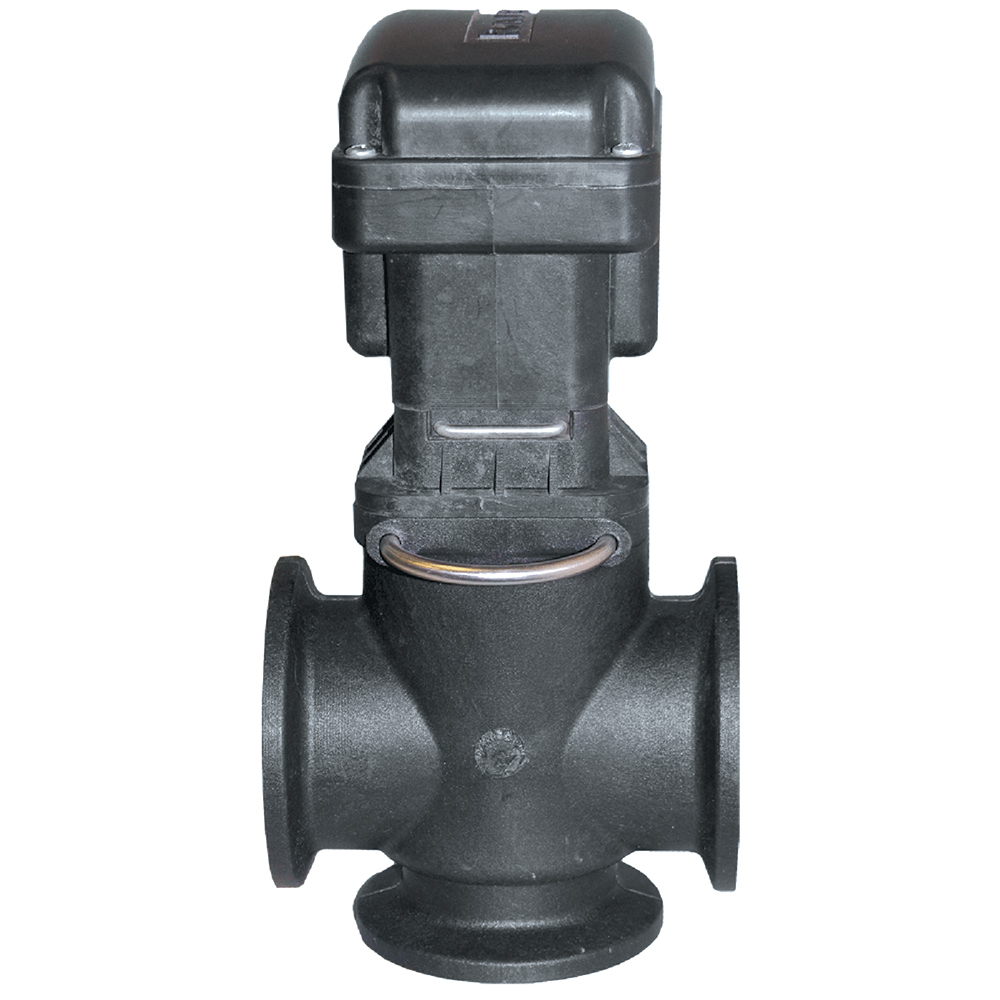

Boom On/Off Valve, 3 Port Valve, M220 Flange/2" FPT Inlet, M200 Flange/1.5" FPT, Outlet

Raven 12-volt boom valves are designed for long-lasting, precision performance across a variety of liquid handling applications, most commonly involving ag sprayer systems. These poppet-style 12-volt boom On-Off offer several advantages over traditional ball-style valves including: high flow rates, fast open/close times, great resistance to wettable powders, and increased reliability. Each On-Off boom valve features a robust polypropylene body with stainless steel wetted parts and Viton® seals. A pin retained motor ensures easy, fast repairs. All valves feature 2" Banjo M220 flange full port inlets and a 2" Banjo M200 flange or 1-1/2" FPT standard port outlet. Valves operate at 12-volt DC current and have a 0.8 second actuation speed. This high flow boom On-off valve is rated up to 89 GPM (@ 5 PSI drop) and 150 PSI max working pressure. Valves include Raven Conxall connectors for seamless pairing with other Raven system components.

Technical Specs:

Type: Boom Valve
Style: On-Off
Port Size: 2" Full Port M220 Flange Inlet x 2" Std. Port M200 Flange/1-1/2" FPT Outlet
Port Number: 3
Body Material: Polypropylene
Ball/Disc Material: Stainless Steel
Max GPM: 89 GPM @ 5 PSI Drop
Operation: 12 Volt DC
Actuation Type: Electric
Actuation: 0.8 seconds
Connection Type: 2" M220 Series Flange Inlet & 2" M200 Series Flange/1-1/2" FPT Outlet
Max Working Pressure: 150 PSI

Manufacturer:

SKU: RV657

VIEW CATALOG PAGE E1104

$397.00 / EA

Qty:

i h

Boom On/Off Valve, 3 Port Valve, M220 Flange/2" FPT Inlet, M200 Flange/1.5" FPT, Outlet

Shipping costs will be invoiced at time of shipment for all orders shipping to locations outside of the contiguous United States including Hawaii and Alaska. If you require a freight quote, please call us at 1-888-677-5054.
