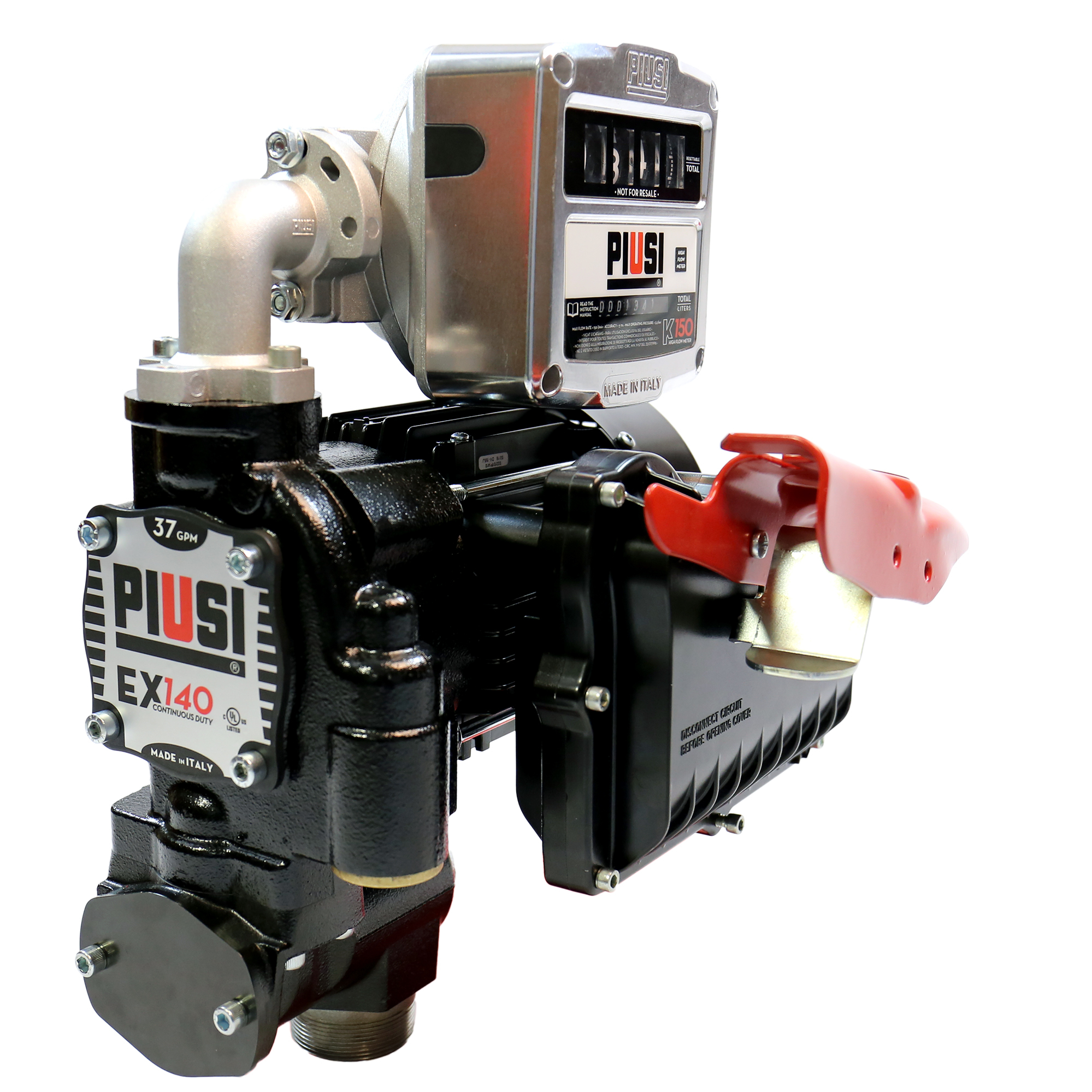

Fuel Transfer Pump, EX140 Models, with Mechanical Meter, 37 GPM, 9 Amps, 120V/60Hz

The Piusi EX140 Fuel Transfer Pump is the most powerful pump in the Piusi fuel pump lineup. The EX140 features a UL and cULus certification. This fuel pump unit is designed to last longer and ensure higher flow rates. Higher flows at the nozzle, are possible due to the innovative spring-loaded vane pump design and continuous-duty motor. 37 GPM fuel transfer pump is best suited in the Agricultural, Construction, Municipalities and Marine industries. It's continuous duty-cycle makes it an excellent choice for heavy machinery and fleet fueling.

A safe and reliable option for fuel transfer in potentially explosive environments. The Piusi EX140 fuel transfer pump is ideally used to deliver fuel directly to fleet vehicles, generators, heavy machinery and equipment, Over-the-Road (OTR) semi-tractors, fuel tanks, farm equipment. Note: Do Not Use with Hose Smaller than 1" I.D.

Features:

Spring Loaded, Reinforced Vanes with Grooved Rotors
Improves Efficiency and Allows for Smaller, more Compact Assembly
Continuous Duty Cycle due to Fan-Cooled Motor
Grooved Rotors Allow more Fuel to be Displaced per Revolution
Flanged Components Eliminate Need for Thread Sealant
Thermal Protection
High-Flow

Technical Specifications:

1750 RPM Motor
37 GPM Max Flow – At the Nozzle (Thru 1" x 13' Hose & Automatic Nozzle)
Designed to Transfer Flammable Fluids of Any Type
Viton® Seals
120V Continuous-Duty Motor
1" Discharge Plumbing is Required on High-Flow EX Series Pumps
Compatible Fluids: Diesel, Kerosene, Petrol, Alcohol Mixed Max 15%, AvGas 100/100LL, Jet A/A1 - Aspen 2/4
Available in only 120V AC Motors
1-1/4" FPT Inlet / 1" FPT Outlet
Max Amp Draw: 9 amps

2 Year Limited Warranty

Manufacturer:

SKU: PUEX140-MM

VIEW CATALOG PAGE E1284

$1,520.00 / EA
