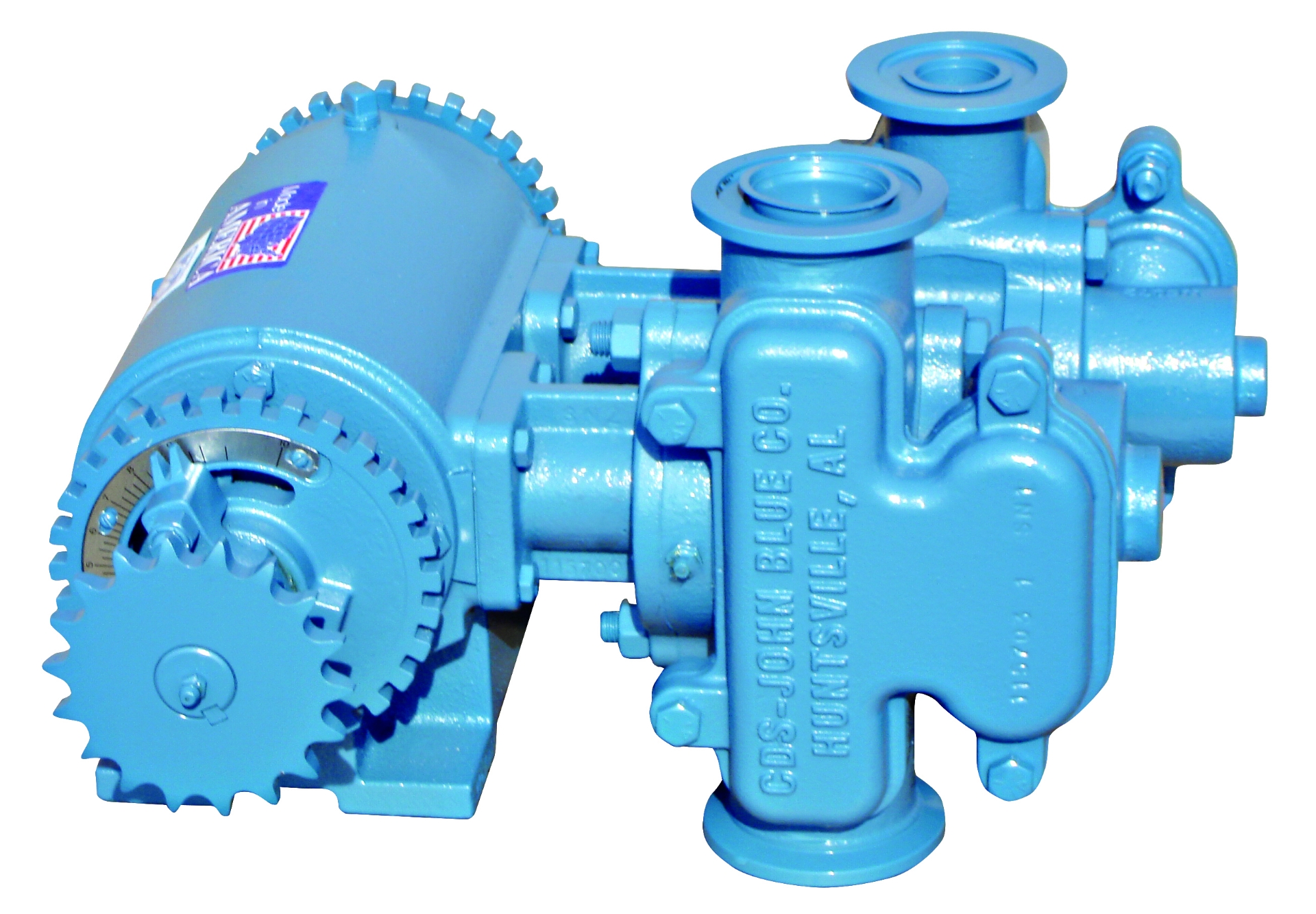

Ground Driven Metering Pump, Adjustable Rate Dual Piston, 31.2 GPM, 120 PSI, 10:1 Max Ratio, 1-1/2" FPT/2" SP Flange Inlet Ports, 1" FPT/2" SP Flange Outlet Ports, No Clutch

Features:

Apply (2) products with one piston pump.
Use only one drive system (DRV3300, 3200 etc.).
Independently adjustable stroke.
5 to 1 Maximum ratio between pumping sides. (10:1 on NGP5655AR); 2:1 min. ratio.
Available as a ground driven pump or run hydraulically (Hydraulic motor extra).
Ideal for starter fertilizer on one side and nitrogen on the other side. (Ex: 5 GPA starter fertilizer & 10-25 GPA NPK; 7 GPA starter fertilizer & 14-35 GPA NPK).
Double piston-double acting.
Variable Stroke.
Rated Flow: 8055AR: 42 GPM total, 21 GPM per side. 9055AR: 34.2 GPM total, 68.4 GPM per side. 5655AR: 31.2 GPM total; 21.0 & 10.2 GPM
Rated Pressure is 120 PSI.
Rated Speed: 450 RPM maximum.

Small Side Inlet/Outlet is 1" FPT/200 Series Flange; Large Side Inlet/Outlet is 1-1/2" FPT/200 Series Flange

Manufacturer:

SKU: BUNGP5655ARF

$2,479.00 / EA
