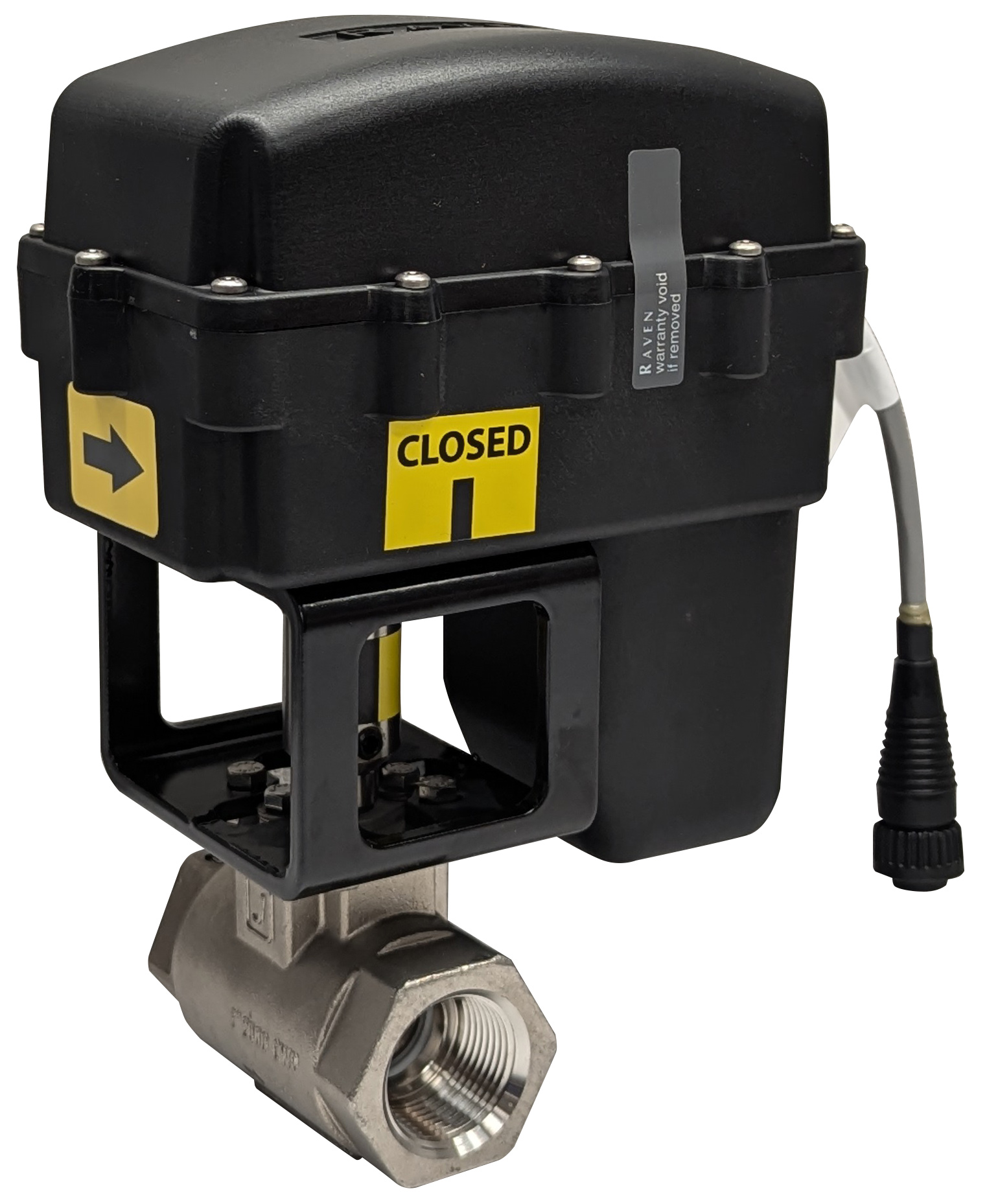

12 Volt Control Valve for NH3 Control, Stainless Steel, 1", 400 PSI

Raven 12-volt regulating valves are designed to provide exceptional performance in a wide array of high-pressure applications including NH3. This 12-volt control valve is made of high-quality components and materials, including a heavy-duty stainless-steel valve body for excellent wear and chemical resistance. The regulating operation of this Raven control valve for anhydrous ammonia (NH3) enables greater control of your NH3 system, helping prevent under- or over-applications of product. The 1" FPT anhydrous ammonia valve is compatible with many of your Raven anhydrous systems and is install-ready, featuring a 4-pin Conxall connector compatible with Raven cables and an ISO mounting pad.

This Raven butterfly valve is rated to 400 PSI working pressure at @ 70° F.

Technical Specs:

Type: Butterfly Control Valve
Style: Regulating
Port Size: 1"
Port Number: 2
Body Material: Stainless Steel
Ball/Disc Material: Stainless Steel

Flow Direction: 2-way
Flow: Standard Port
Operation: 12-volt DC
Actuation Type: Electric
Connection Type: 1" FPT
Max Working Pressure: 400 PSI

Manufacturer:

SKU: RV063-0173-877

VIEW CATALOG PAGE E1390

$886.00 / EA
