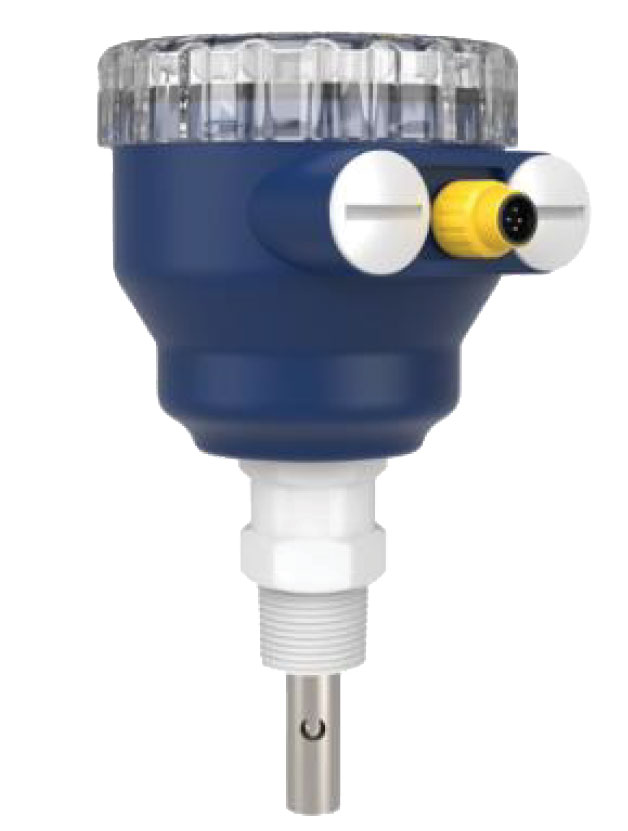

Sensor, Conductivity/Salinity, Polypropylene Body, Titanium Alloy Stem, 4-20mA 2-wire Flying Lead, 3/4" MPT, 0-200,000uS Range, Cell Constant: 10

The ProCon® line of analytical sensors, from Icon Process Controls, has been designed for difficult industrial applications. They've consistently proven to outperform in extreme conditions. Factory Calibrated Sensors designed for Conductivity, TDS, Salinity, and Resistivity monitoring. No costly conductivity module required. Temperature-compensated. High Accuracy with Quick Response Time. 2-Electrodes. The ProCon® Series Double Electrode Conductivity Sensors have repeatedly been proven to operate in a wide variety of industrial applications up to 200,000 μS/cm. As the requirements of determining impurities in water continues to expand and change, measuring specific conductivity of aqueous solutions is becoming ever more important. 4-wire products must be used with ProCon® Controller – call for Details. Analytical fittings (Saddles, Union Tees, etc) are available – call for details.

Applications Include:
Process Control, Water Quality Analysis, Sanitization Systems, Neutralization Systems, Effluent Monitoring, Pool & Spa Control, Aquatic Animal Systems, Food/Beverage, Pharmaceutical, Chemical Plants, Desalination, and Cooling Towers

450 Features:

Installation Thread: ¾" MPT
Pressure Rating: 150PSI
Accuracy: ±.5% of Reading
Temperature Compensation: PT1000 (Standard) / PT100 Available
Temperature Range: 14 - 176°F
Sensor Electrode: Titanium Alloy
IP Rating: IP68
Standard Cable Length: 5m
Measurement Method: Bipolar
Measurement Range: 0 - 100μS / 0 – 1,000μS / 0 – 10,000μS / 0 – 200,000μS
Connection Methods: 4-20mA / 4-wire (use with ProCon® Controller
Flying Lead Cable can be extended to 100m.
Display Type: Available in 4-digit local display or Blind Junction Box

SKU: ICC450-PM1F

Save!

10% on 5

$721.00 / EA

Qty:

i h

Sensor, Conductivity/Salinity, Polypropylene Body, Titanium Alloy Stem, 4-20mA 2-wire Flying Lead, 3/4" MPT, 0-200,000uS Range, Cell Constant: 10

Shipping costs will be invoiced at time of shipment for all orders shipping to locations outside of the contiguous United States including Hawaii and Alaska. If you require a freight quote, please call us at 1-888-677-5054.
