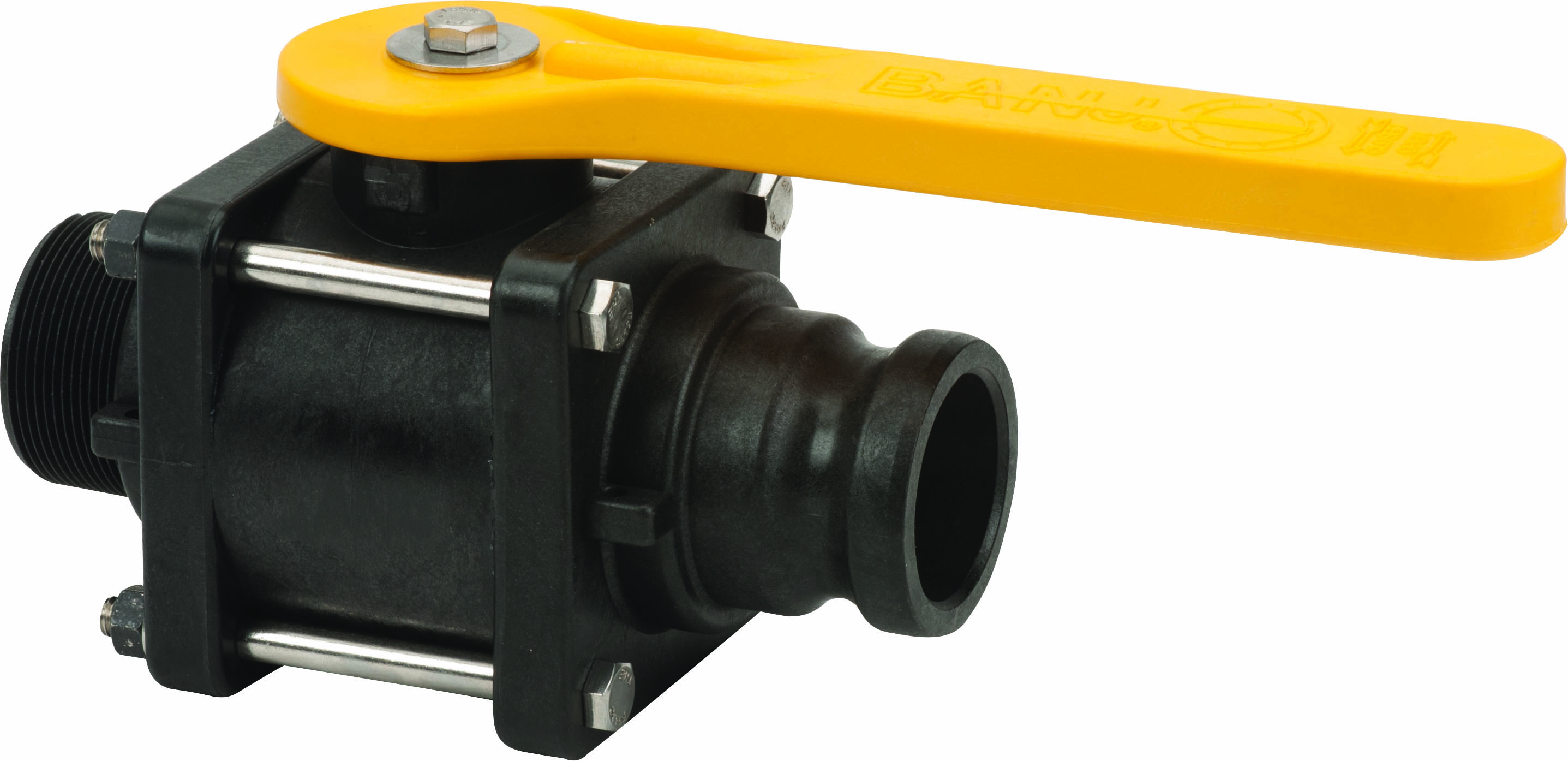

    Special Pattern "Stubby" Ball Valve, Polypropylene, 2" Adapter x 2" MPT Full Port, 2" Flow, 4 Bolt

    Banjo "Stubby Valves" are specially engineered for those hard-to-fit applications, helping eliminate the need for additional fittings. The special-pattern ball valve has a precision-molded, fiberglass-reinforced polypropylene body built for a wide array of demanding applications. The self-aligning poly ball is diamond turned after molding, ensuring smooth operation every time. This 2-inch full port Banjo valve also includes FKM seals, self-lubricating PTFE stem bushings and seats, and a manual valve handle for convenient operation.

    Valve features 2" adapter by 2" MPT full port connections. Maximum operating pressure is 150 PSI @ 70° F.

    Standard Features:
    • Precision-molded, fiberglass-reinforced polypropylene construction
    • Diamond-turned, self-aligning poly ball for smooth operation
    • PTFE self-lubricating stem bushings and seats
    • Compact, space-saving design
    • FKM seals
    • Lightweight yet robust; versatile applications
    • Stainless steel 4-bolt pattern
    • Manual actuation handle


    Technical Specs:
    • Type: Ball Valve
    • Style: 4-bolt "Stubby"
    • Port Size: 2"
    • Body Material: Polypropylene
    • Ball/Disc Material: Polypropylene
    • Seat Material: PTFE
    • Flow Direction: 2 Way
    • Flow: Full Port
    • Actuation Type: Manual
    • Connection Type: 2" Adapter x 2" MPT
    • Max Working Pressure: 150 PSI

    Manufacturer: Banjo Valves & Fittings
    SKU: TKVFMT204FP
    $66.00 / EA
