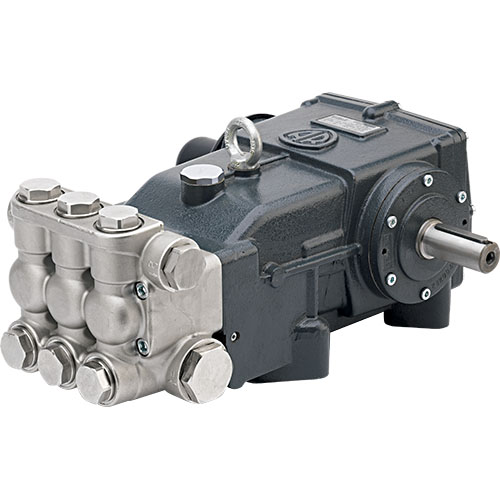

Triplex Plunger Pump: MAX 18.5 GPM, 4000 PSI, 1000 RPM (35mm Shaft)

Engineered for powerful, long-lasting, reliable performance in even the most demanding work environments, AR triplex plunger pumps are designed for a wide variety of commercial and industrial applications. The industrial triplex plunger pumps are built from high-strength, die-cast aluminum and feature a forged brass head and valve covers for excellent wear and corrosion resistance. Delivers consistent output during operation while extra-thick solid ceramic plungers and stainless-steel valves, seats, and springs ensure this triplex high-pressure washer pump performs season after season. AR pressure washer pumps are low-maintenance, energy-efficient solutions for many high-pressure systems, delivering superior performance and long-lasting durability. Ideal for a wide array of industrial cleaning operations, car/truck washes, pressure wash applications, and more!

*Plunger pump rails are not included and must be ordered separately if needed.

Technical Specs:

Type: Plunger
Pump Body Material: Die-cast aluminum with forged brass head (nickel-plated)
Inlet Size/Type: 1-1/2" FPT
Outlet Size/Type: 1" FPT
Max GPM: 18.5 GPM
Max PSI: 4,000 PSI
Seal Material: Viton®
Shaft Type: Solid (N-version)
Shaft Size (OD Diam): 35 mm
Drive Type: Gas engine/Electric Motor
Max RPM: 1000 RPM
Drive Horsepower: 50.8 EBHP
Max Fluid Temp: 140° F

Standard Features:

High strength, forged brass manifolds
Aluminum oxide ceramic plungers
Stainless steel valves, seats, and springs
Continuously lubricated seals and V-packings
Triple lip oil seals
Extra-long connecting rods made from a special alloy
Die-cast aluminum crankcases with oversized cooling fans
Premium bearings for exceptional load support

AR Plunger Pumps are designed for a wide variety of industrial cleaning, car/truck wash and pressure wash applications. Available in pulley or direct drive for electric motor or gas engines.

SKU: ARRTJ70

VIEW CATALOG PAGE E0289

$4,835.00 / EA
