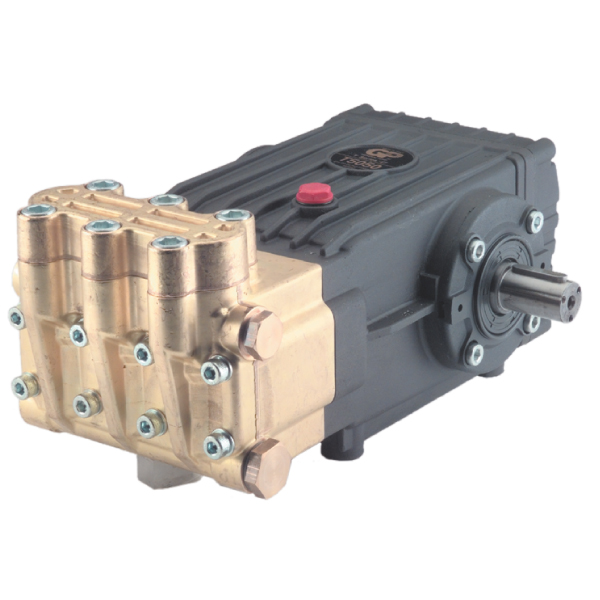

Triplex Plunger Pump, Pulley Drive, MAX 5.0 GPM, 5000 PSI, 1845 RPM (24mm Shaft)

Engineered for powerful, long-lasting, reliable performance in even the most demanding work environments, triplex plunger pumps from General/Interpump are designed for a wide array of industrial cleaning operations, car/truck washes, pressure wash applications, and more! The industrial triplex plunger pumps are built from high-strength, die-cast aluminum and feature a forged nickel-plated brass head and valve covers for excellent wear and corrosion resistance. Available in pulley or direct drive for electric motors or gas engines, these plunger pumps are built for consistent output during operation. Extra-thick solid ceramic plungers and stainless-steel valves, seats, and springs ensure triplex high-pressure washer pumps perform season after season. General plunger pumps for pressure washing are low-maintenance, energy-efficient solutions for many high-pressure systems, delivering superior performance and long-lasting durability.

*Right-handed shaft is standard; available in optional left-handed "L" version.

Technical Specs:

Type: Plunger
Pump Body Material: Die-cast aluminum with forged brass head (nickel-plated)
Inlet Size/Type: 1/2-14 BSPP-F
Outlet Size/Type: 3/8-19 BSPP-F
Max GPM: 5.0 GPM
Max PSI: 5,000 PSI
Seal Material: Viton®

Shaft Type: Solid
Shaft Size (OD Diam): 24 mm
Drive Type: Pulley
Max RPM: 1845 RPM
Drive Horsepower: 16.2 EBHP
Max Fluid Temp: 165° F
Vacuum Rating (inches Hg): 9 ft. water (7.9 inches Hg)

Manufacturer:

SKU: IPT5050

$1,311.00 / EA
